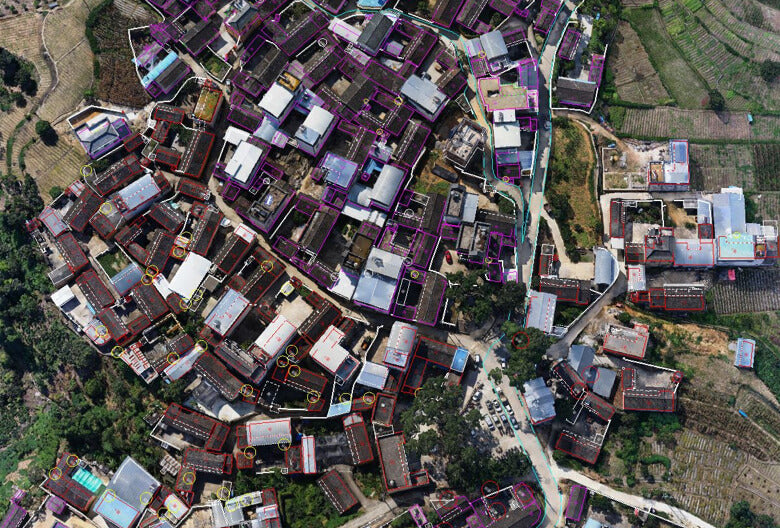

Accuracy without GCPs
Achieve 3 cm horizontal and 5 cm vertical accuracy without ground control points [1], taking photogrammetry accuracy to a whole new level.

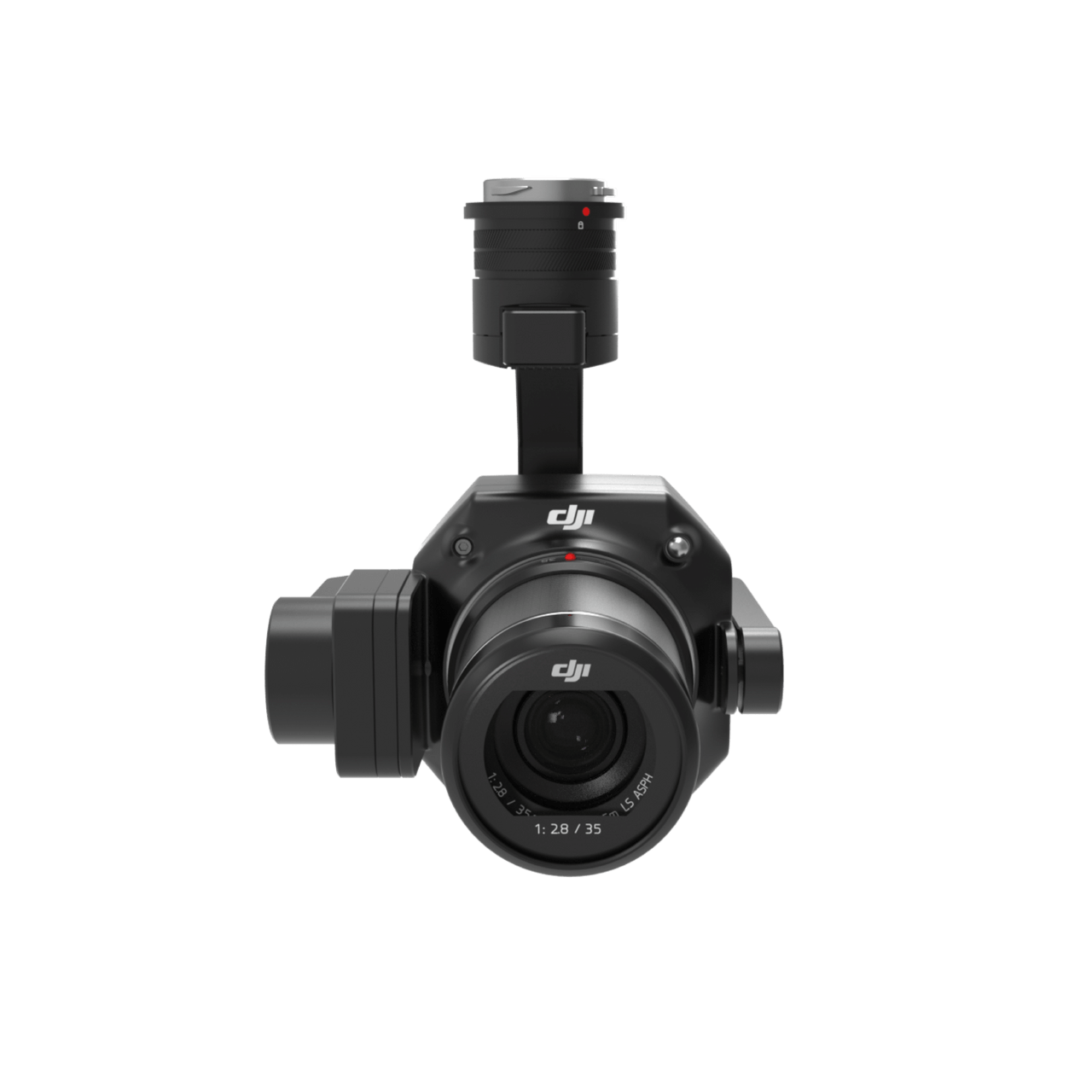

Zenmuse P1
$7,199.00 USD
Sale price
$7,199.00 USD
Regular price
Skip to product information

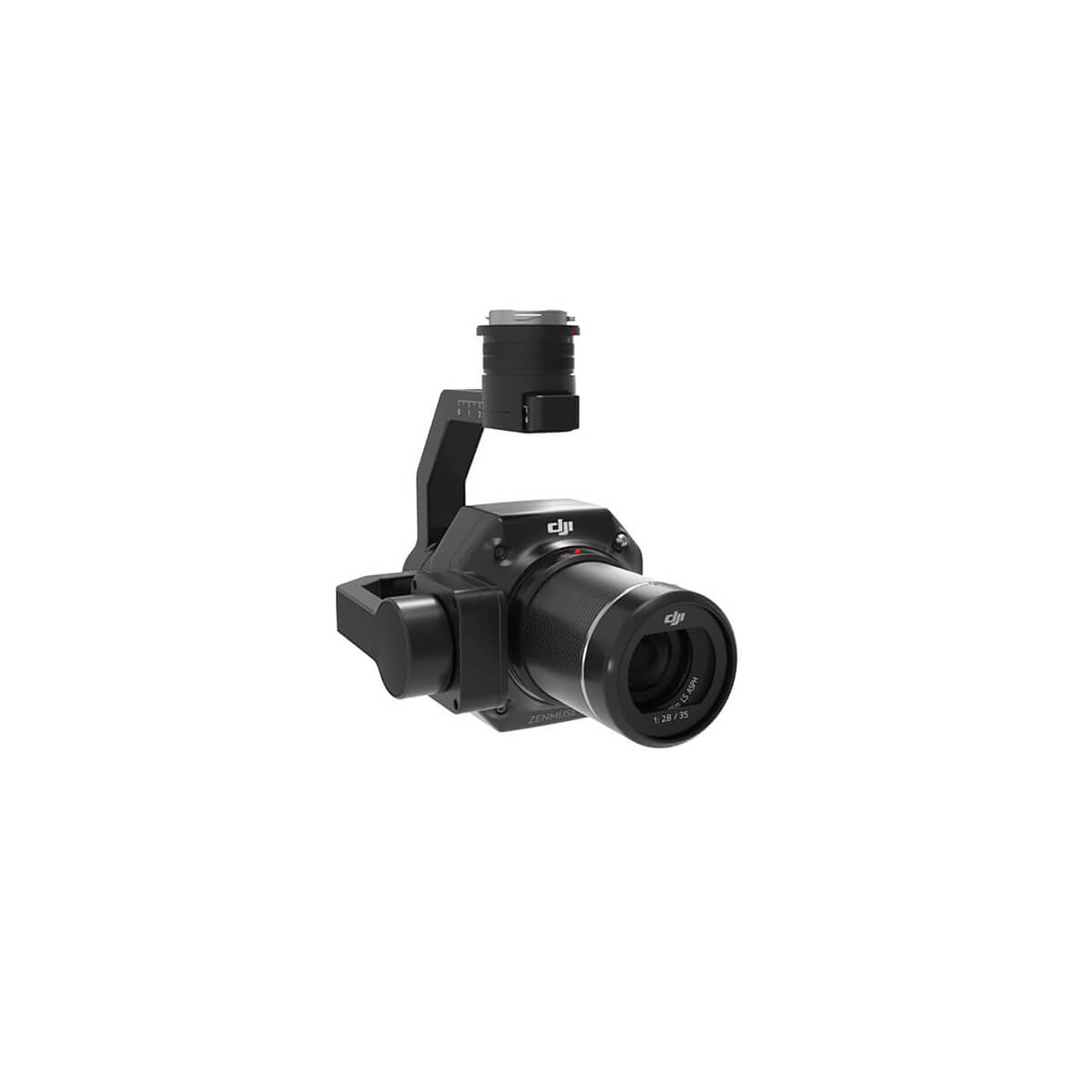

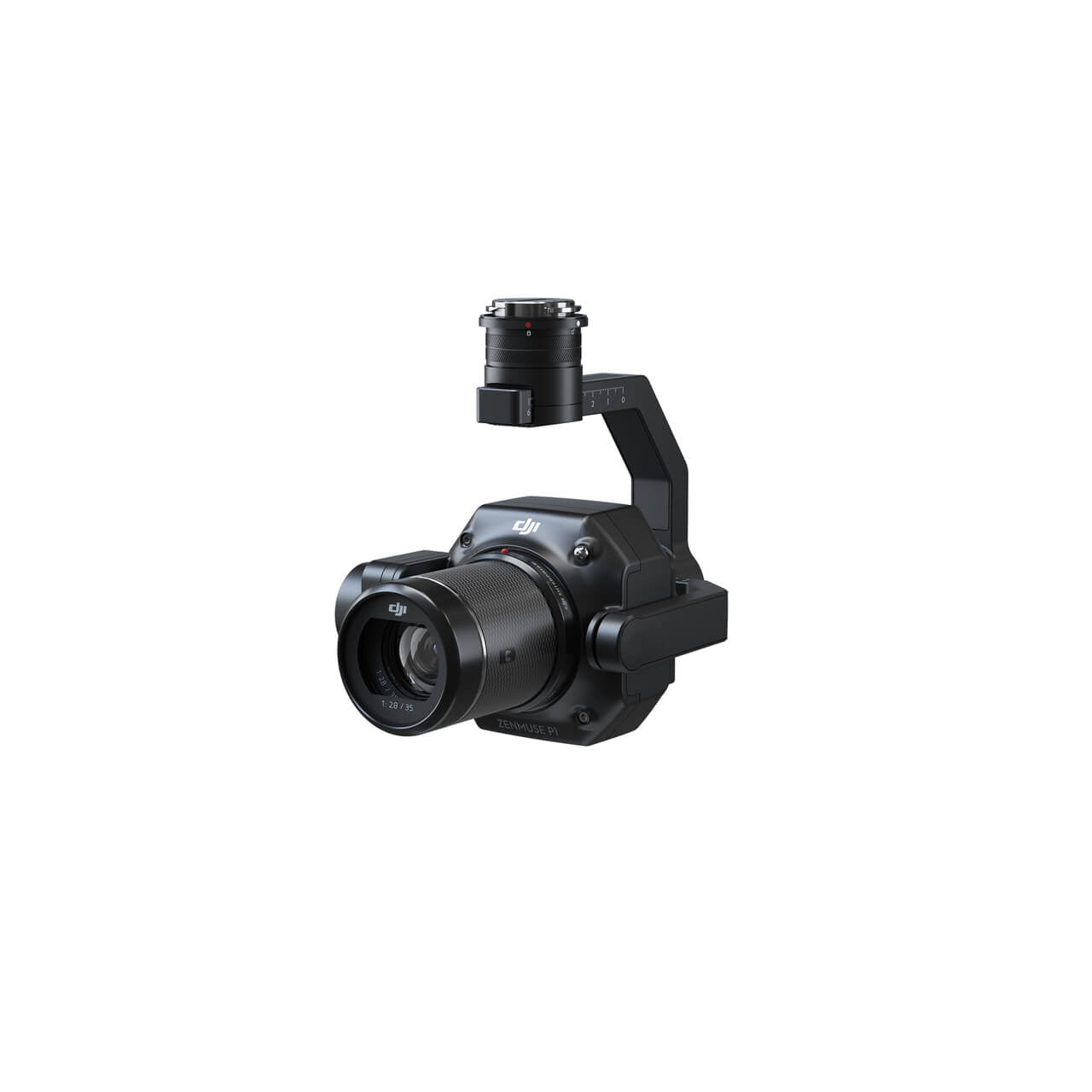

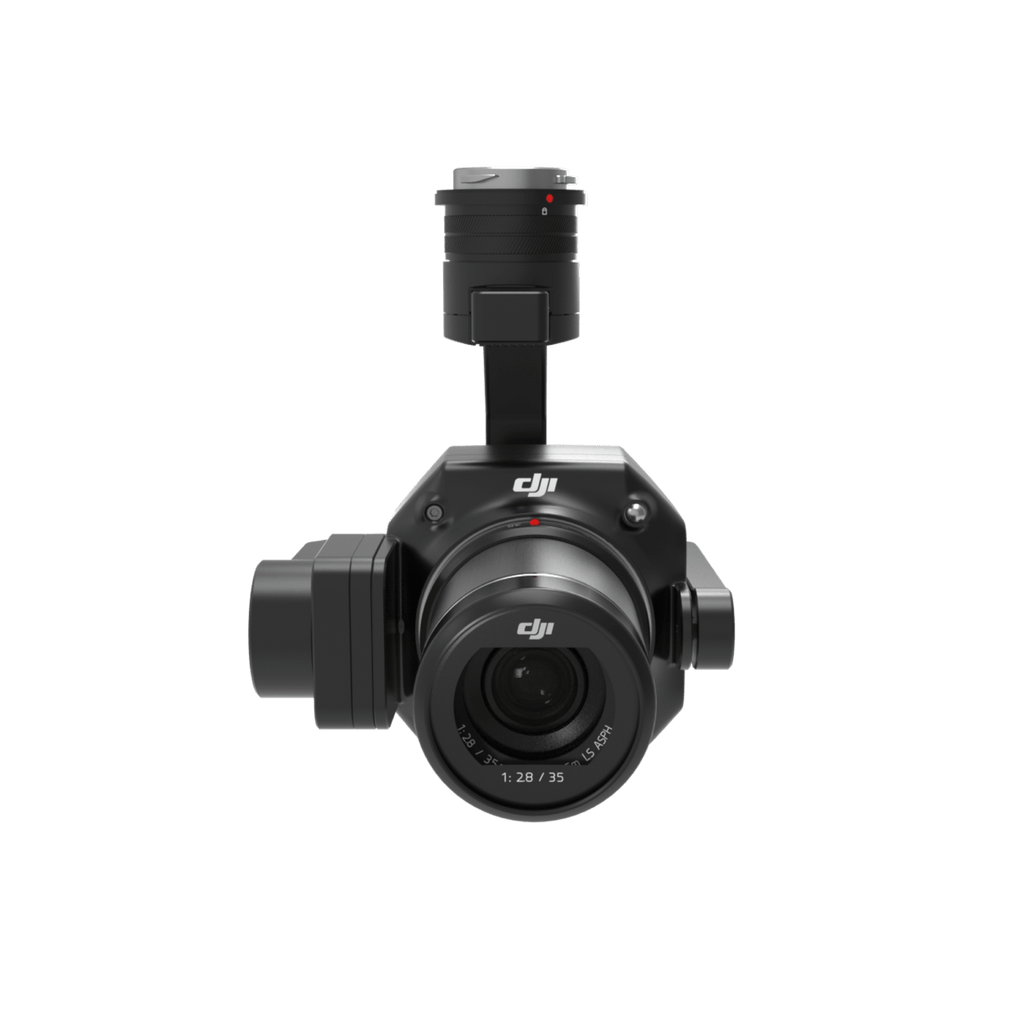

Zenmuse P1
$7,199.00 USD
Sale price
$7,199.00 USD
Regular price
Efficiency through Flexible Full-frame Photogrammetry — the new benchmark for aerial surveying
Key Features：
- Accuracy without GCPs: 3 cm horizontally / 5 cm vertically [1]
- High Efficiency: 3 km² covered in a single flight
- 45 MP Full-frame Sensor
- Global Mechanical Shutter, Shutter Speed 1/2000 Seconds
- Smart Oblique Capture
- TimeSync 2.0 — synchronization at the microsecond level
- Includes a 6-month license for DJI Terra Electricity Version [2]
Take a Closer Look

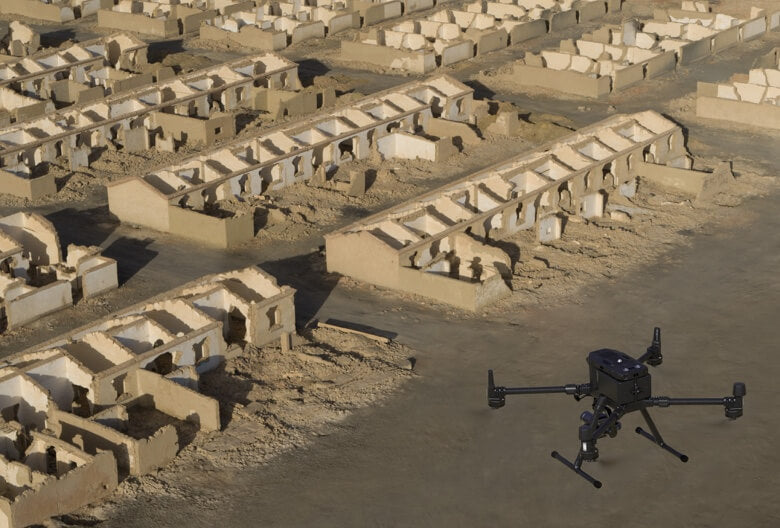

High Efficiency
Cover up to 3 km² in a single flight, dramatically boosting the efficiency of photogrammetry flight missions.

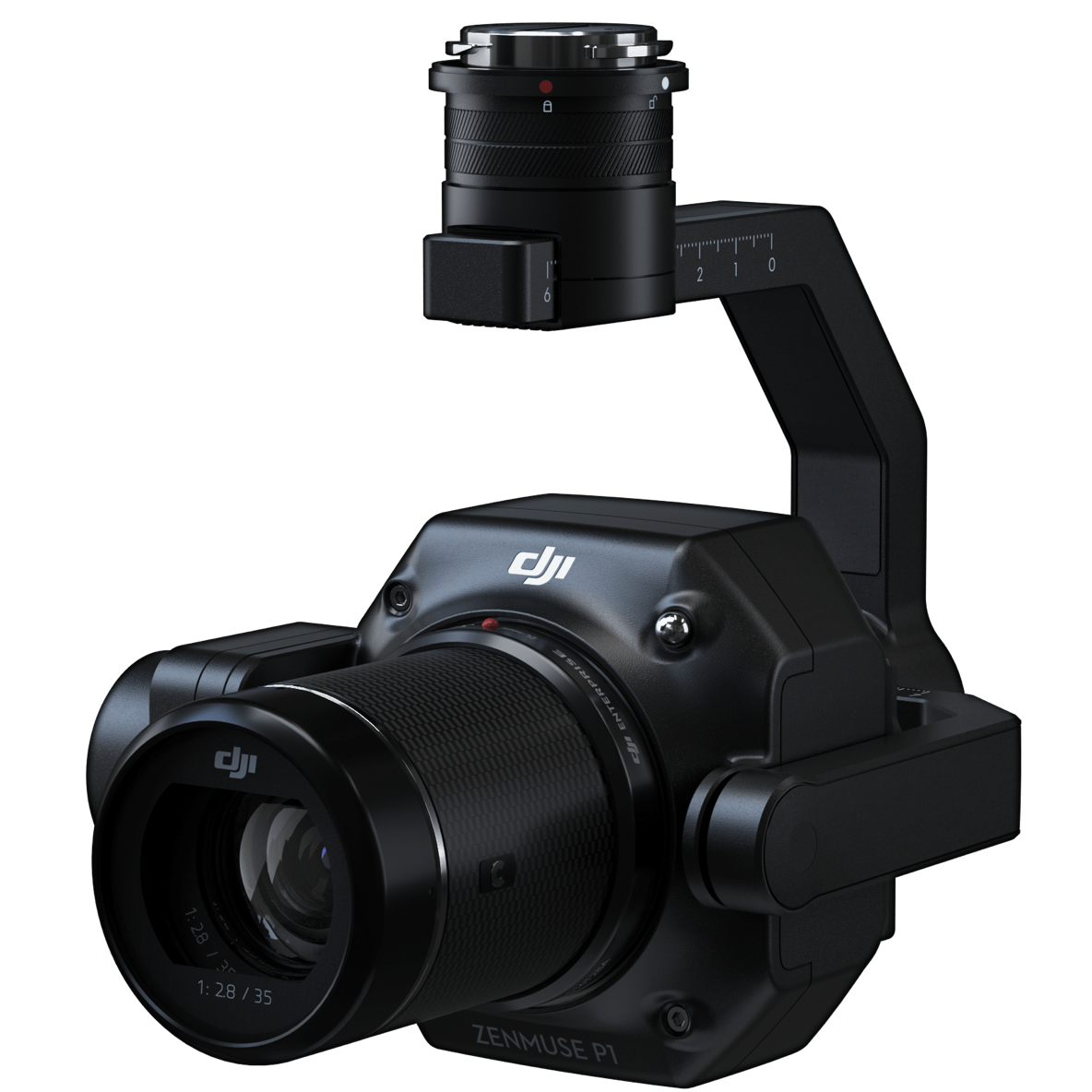

45 MP Full-frame Sensor
A 45MP full-frame sensor with a 4.4 μm pixel size, supporting interchangeable DJI DL 24mm, 35mm, and 50mm fixed-focus lenses for flexible mission planning.

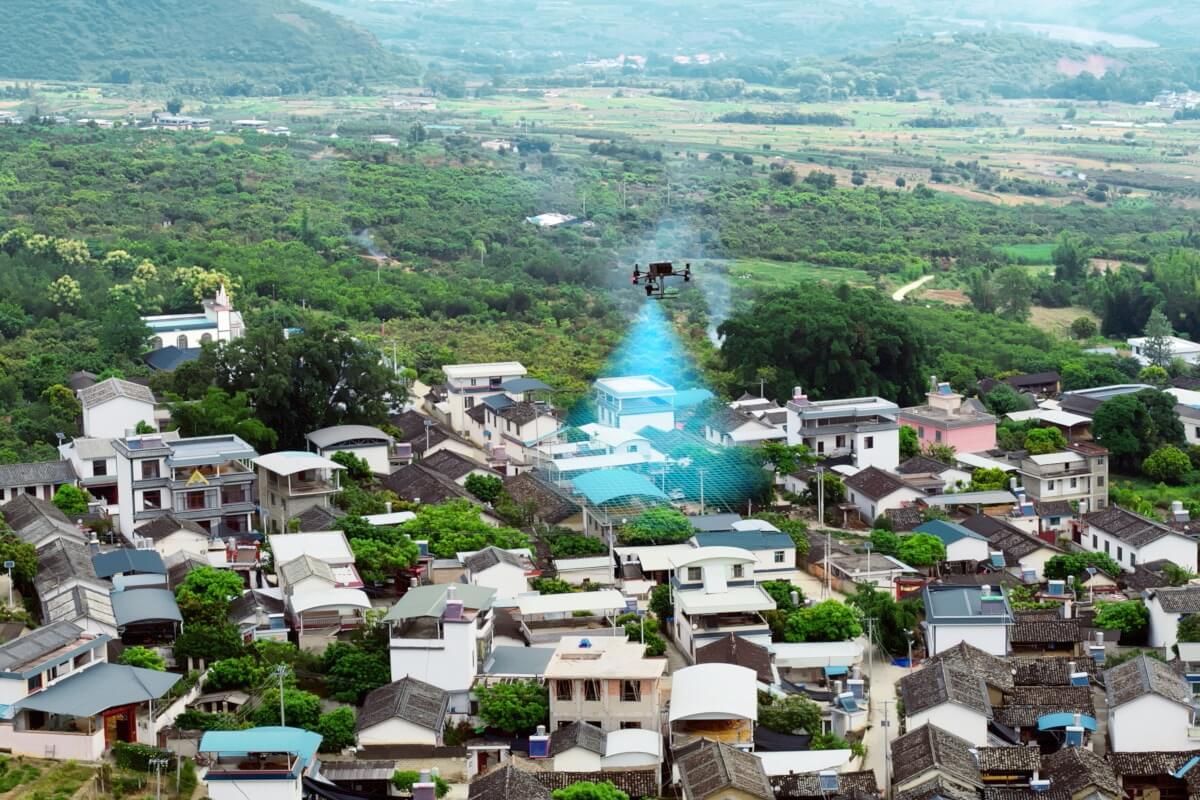

3-axis Stabilized Gimbal with Smart Oblique Capture
The 3-axis stabilized gimbal enables Smart Oblique Capture, automatically rotating the camera to capture nadir and oblique photos in a single flight for more efficient oblique photography.

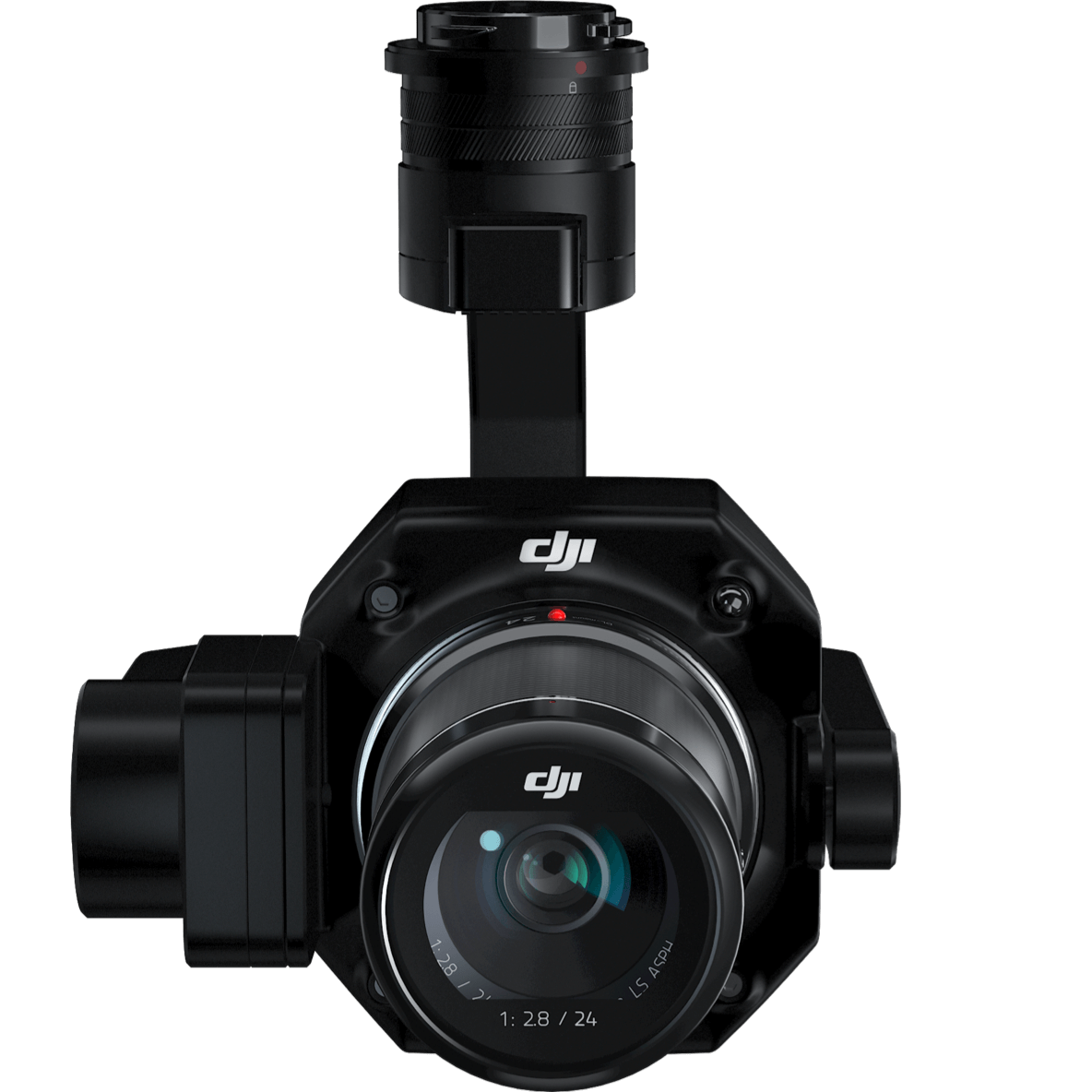

Global Mechanical Shutter
A global mechanical shutter with a shutter speed of up to 1/2000 seconds eliminates motion blur and rolling-shutter distortion during high-speed flight.

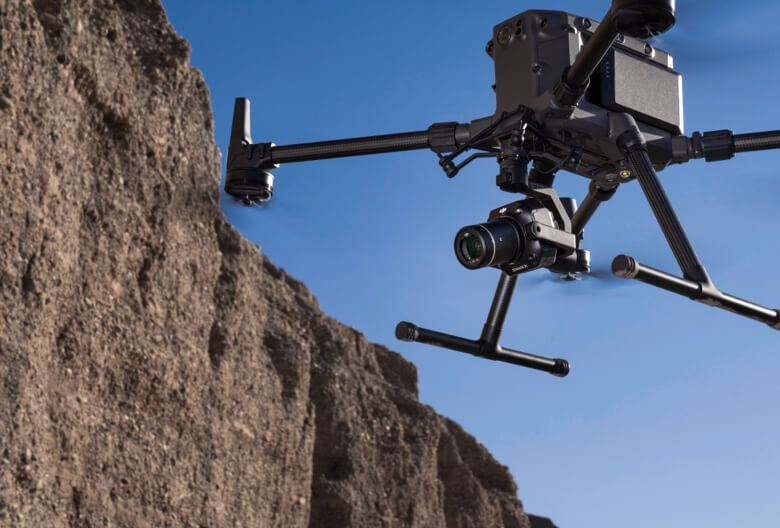

TimeSync 2.0
TimeSync 2.0 synchronizes the camera, flight controller, RTK module, and gimbal at the microsecond level, assigning accurate position data to the center of the CMOS for every image.
Specs
General
- Product Name
- Zenmuse P1
- Dimensions
- 198×166×129 mm
- Weight
- Approx. 800 g
- Power
- 20 W
- IP Rating
- IP4X

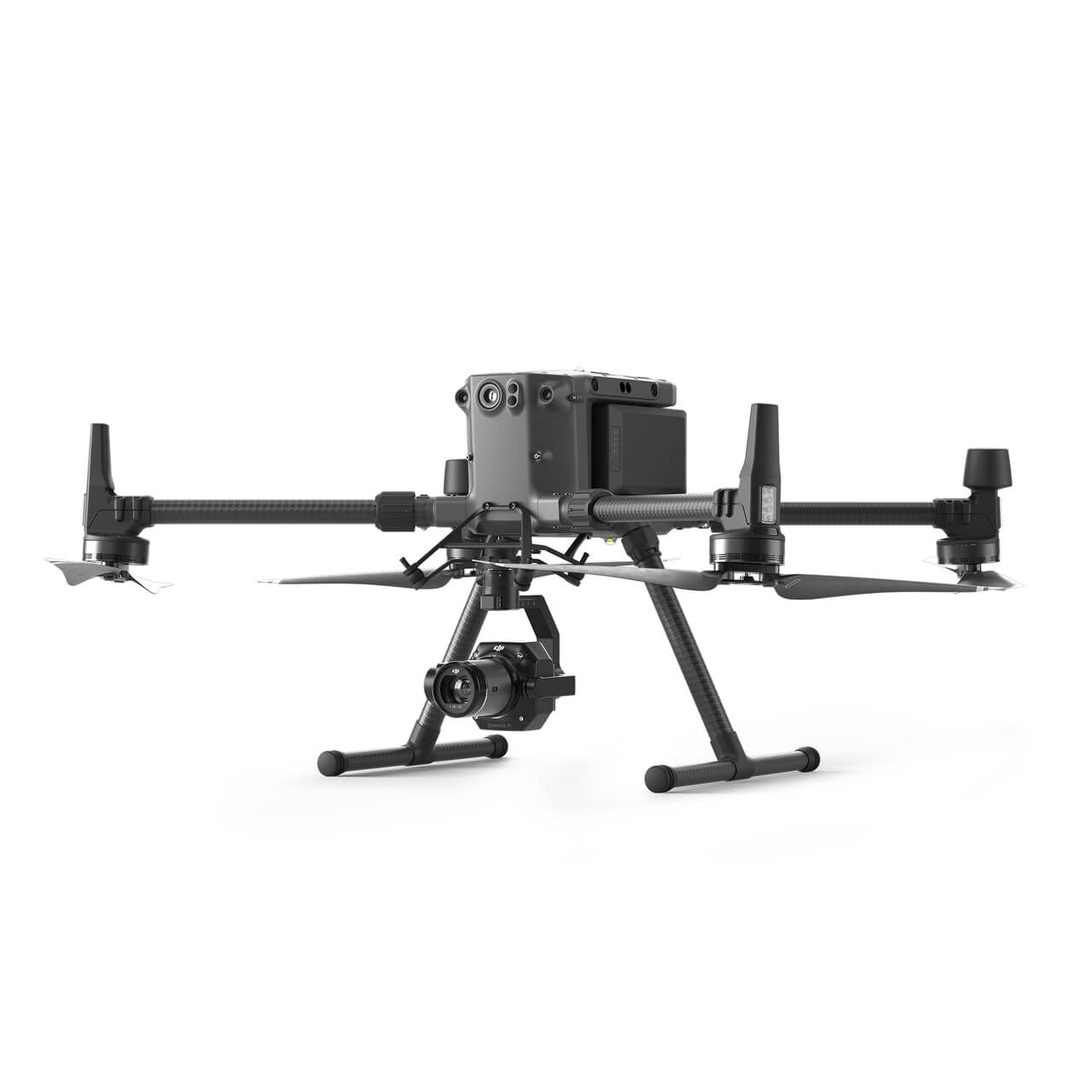

- Supported Aircraft
- Matrice 300 RTK, Matrice 350 RTK, and Matrice 400
- Operating Temperature Range
- -20° to 50° C (-4° to 122° F)
- Storage Temperature Range
- -20° to 60° C (-4° to 140° F)
- Absolute Accuracy
- Horizontal: 3 cm, Vertical: 5 cm (using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with a 75% front overlap rate and a 55% side overlap rate)
Camera
- Sensor
- Sensor size (still): 35.9×24 mm (full frame); Sensor size (max video recording area): 34×19 mm; Effective pixels: 45MP; Pixel size: 4.4 μm
- Supported Lenses
- DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°; DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°; DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°
- Supported SD Cards
- SD: UHS-I rating or above; Max capacity: 512 GB
- Storage Files
- Photo / GNSS Raw Observation Data / Image Log File
- Photo Size
- 3:2 (8192×5460)
- Operation Modes
- Photo, Video, Playback
- Minimum Photo Interval
- 0.7 s
- Shutter Speed
- Mechanical shutter: 1/2000-1 s (1/2000 with aperture value no larger than f/5.6); Electronic shutter: 1/8000-1 s
- Aperture Range
- f/2.8-f/16
- ISO Range
- Photo: 100-25600; Video: 100-25600
Video
- Video Format
- MP4, MOV
- Video Resolution
- 16:9 (1920×1080); 16:9 (3840×2160, only 35mm lens supported)
- Frame Rate
- 60fps
Gimbal
- Stabilized System
- 3-axis (tilt, roll, pan)
- Angular Vibration Range
- ±0.01°
- Mount
- Detachable DJI SKYPORT
- Mechanical Range
- Tilt: -130° to +40°; Roll: -55° to +55°; Pan: ±320°
