1535nm Long-Range LiDAR
Zenmuse L3 achieves a maximum detection range of 950 m [1] at a pulse rate of 100 kHz, tested under 100 klx ambient light and on objects with 10% reflectivity.

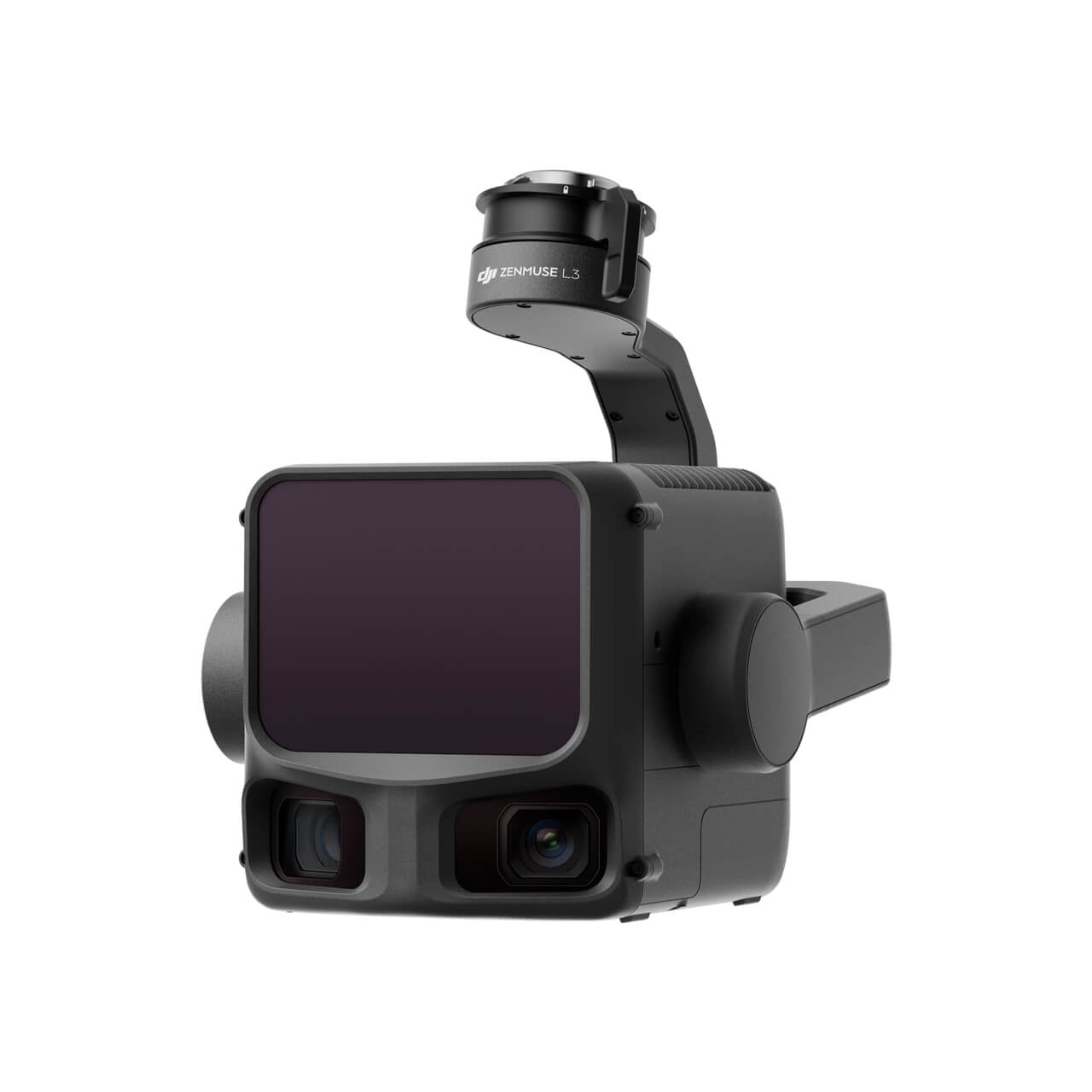

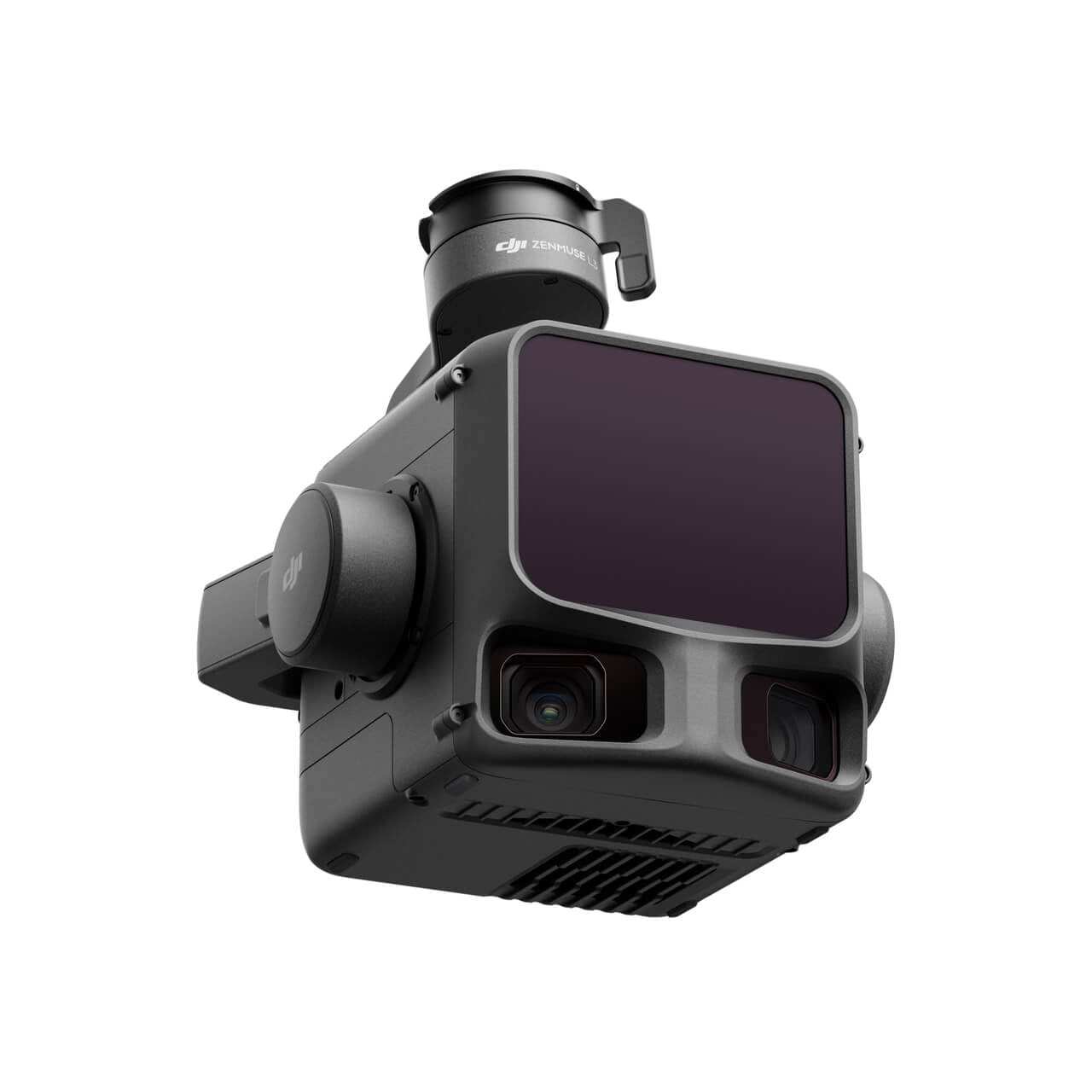

Zenmuse L3
$17,399.00 USD
Sale price
$17,399.00 USD
Regular price
Skip to product information

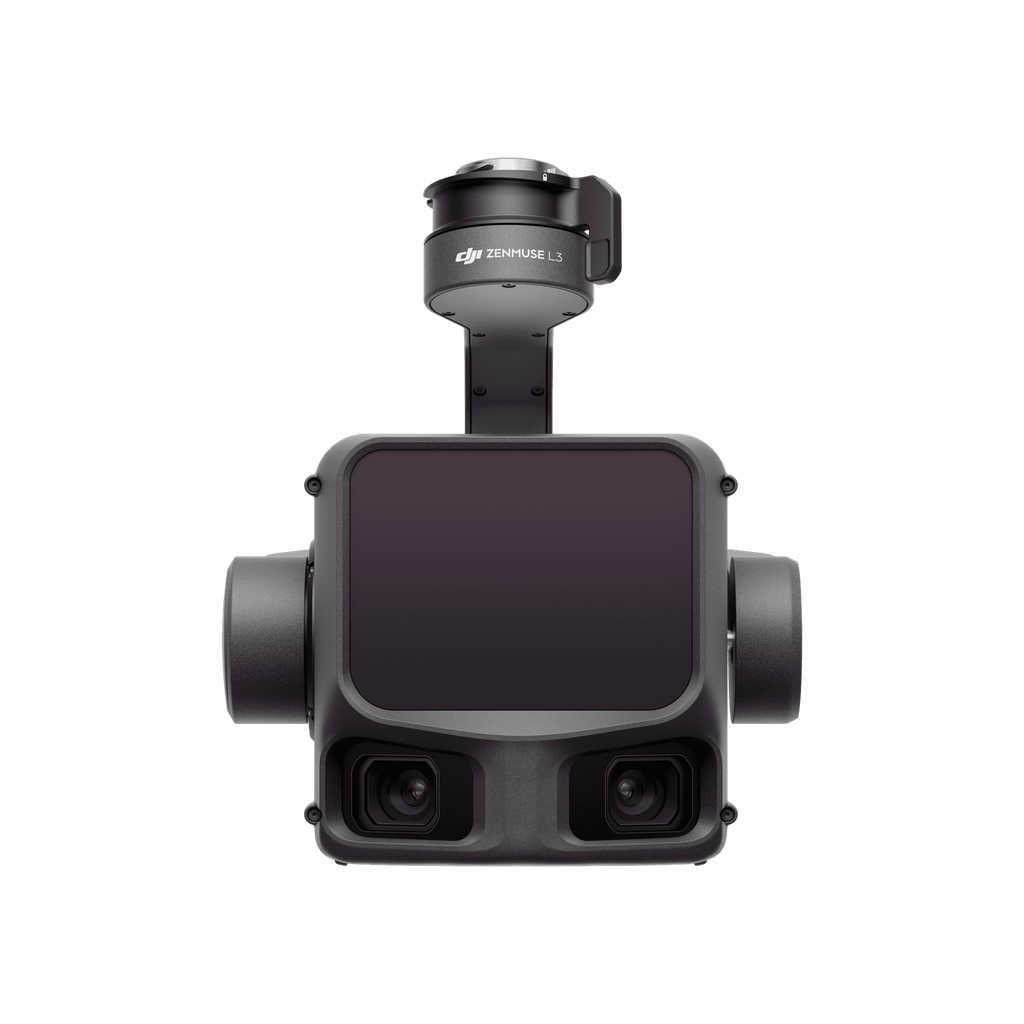

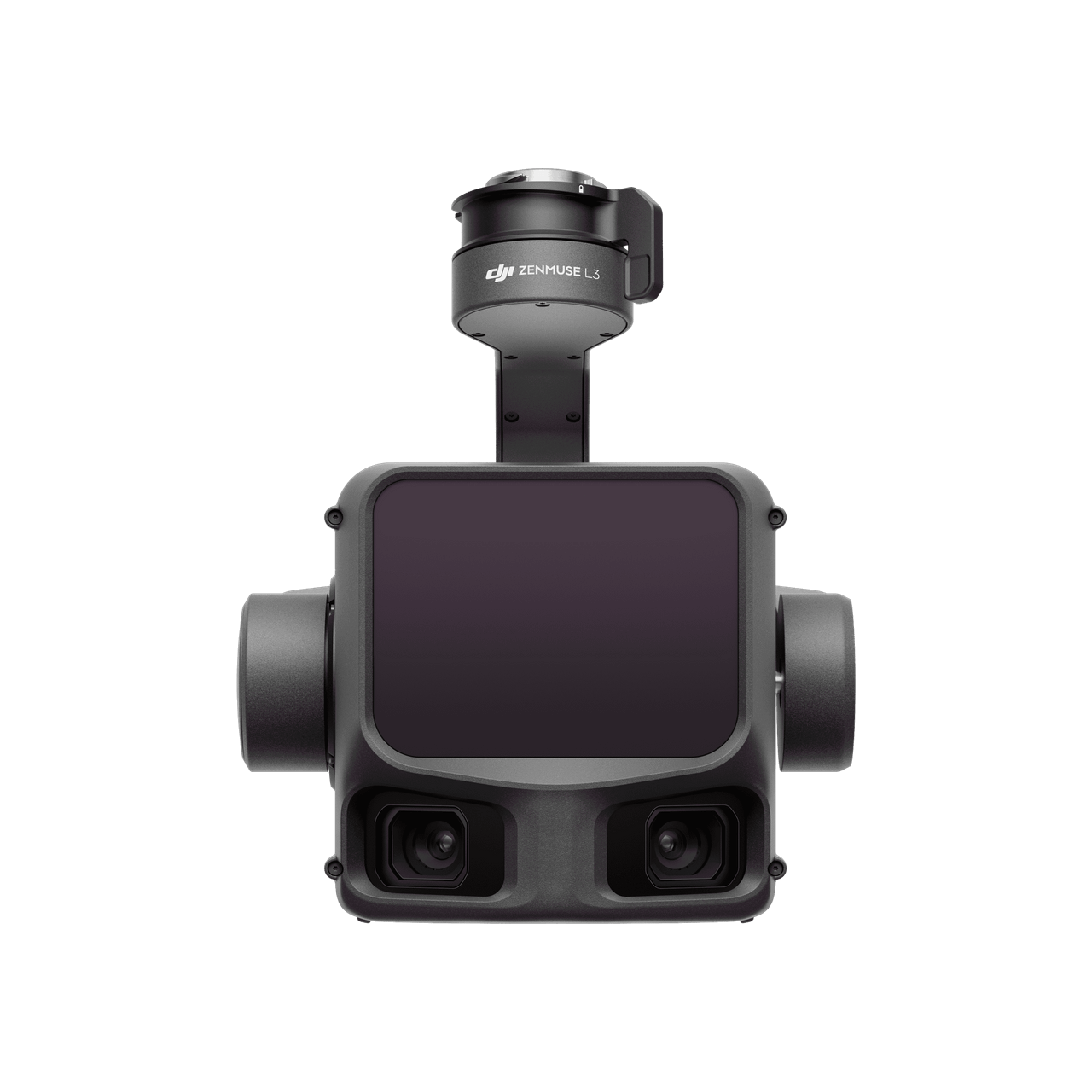

Zenmuse L3
$17,399.00 USD
Sale price
$17,399.00 USD
Regular price

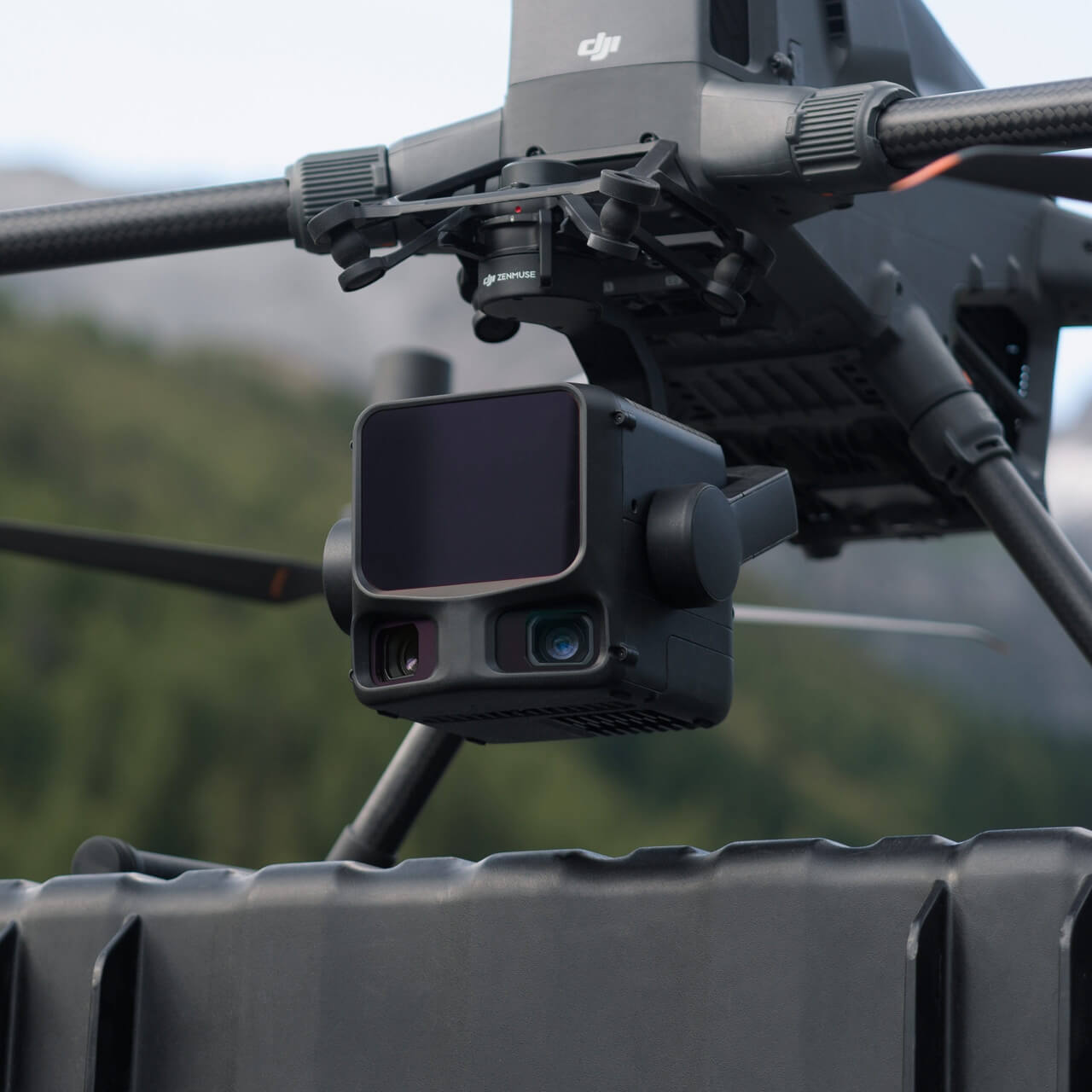

See Through, Far and True — DJI's first long-range, high-accuracy aerial LiDAR system
- 1535nm Long-Range LiDAR
- Dual 100MP RGB Mapping Camera System
- High Accuracy
- High Penetration
- Up to 100 km² per Day [2]
- End-To-End Solution
Take a Closer Look

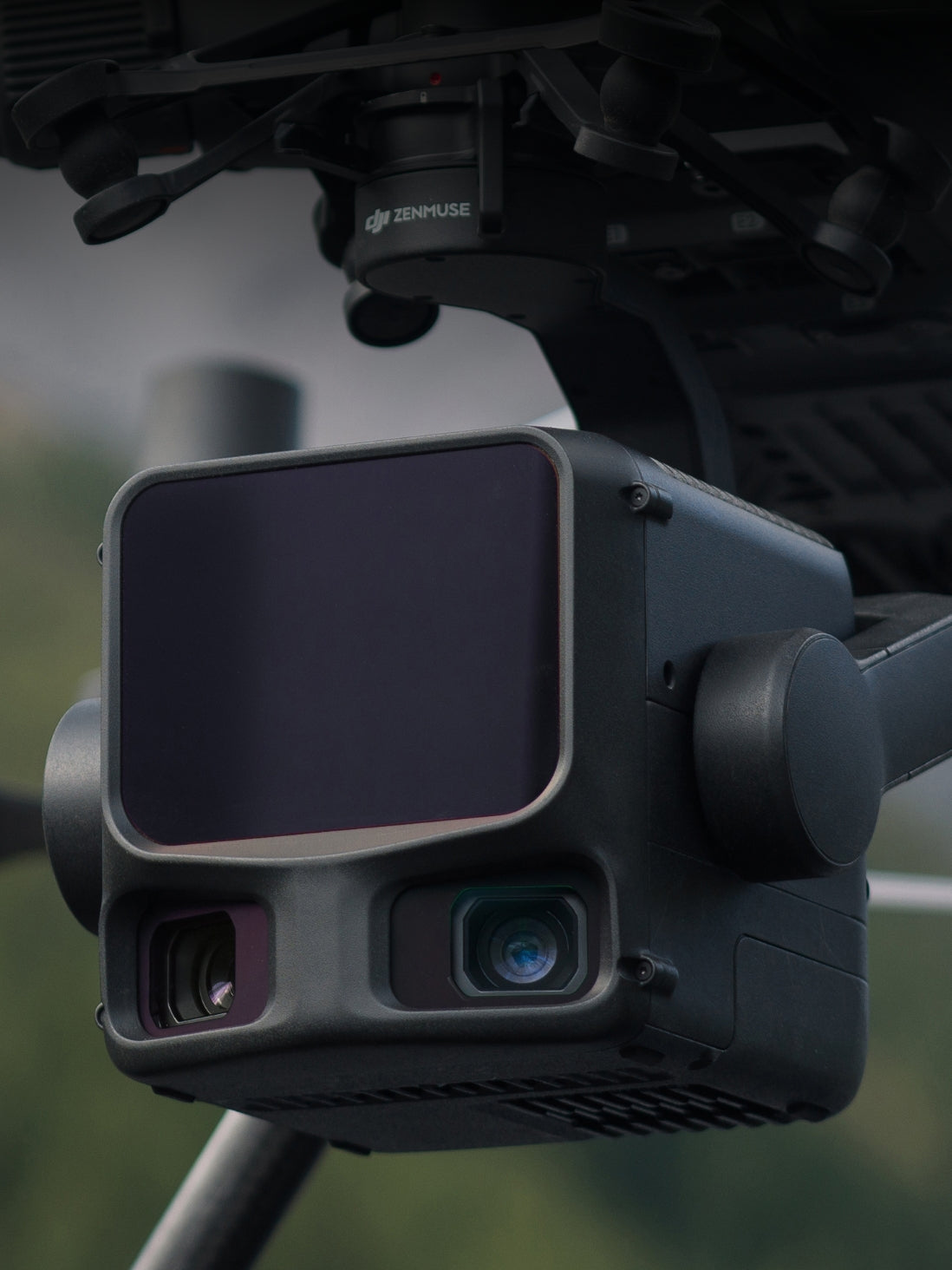

Dual 100MP RGB Mapping Camera System
Equipped with dual 100MP 4/3 CMOS RGB sensors and a mechanical shutter, Zenmuse L3 delivers significantly enhanced accuracy and efficiency. Pixel binning supports an effective 25MP resolution.

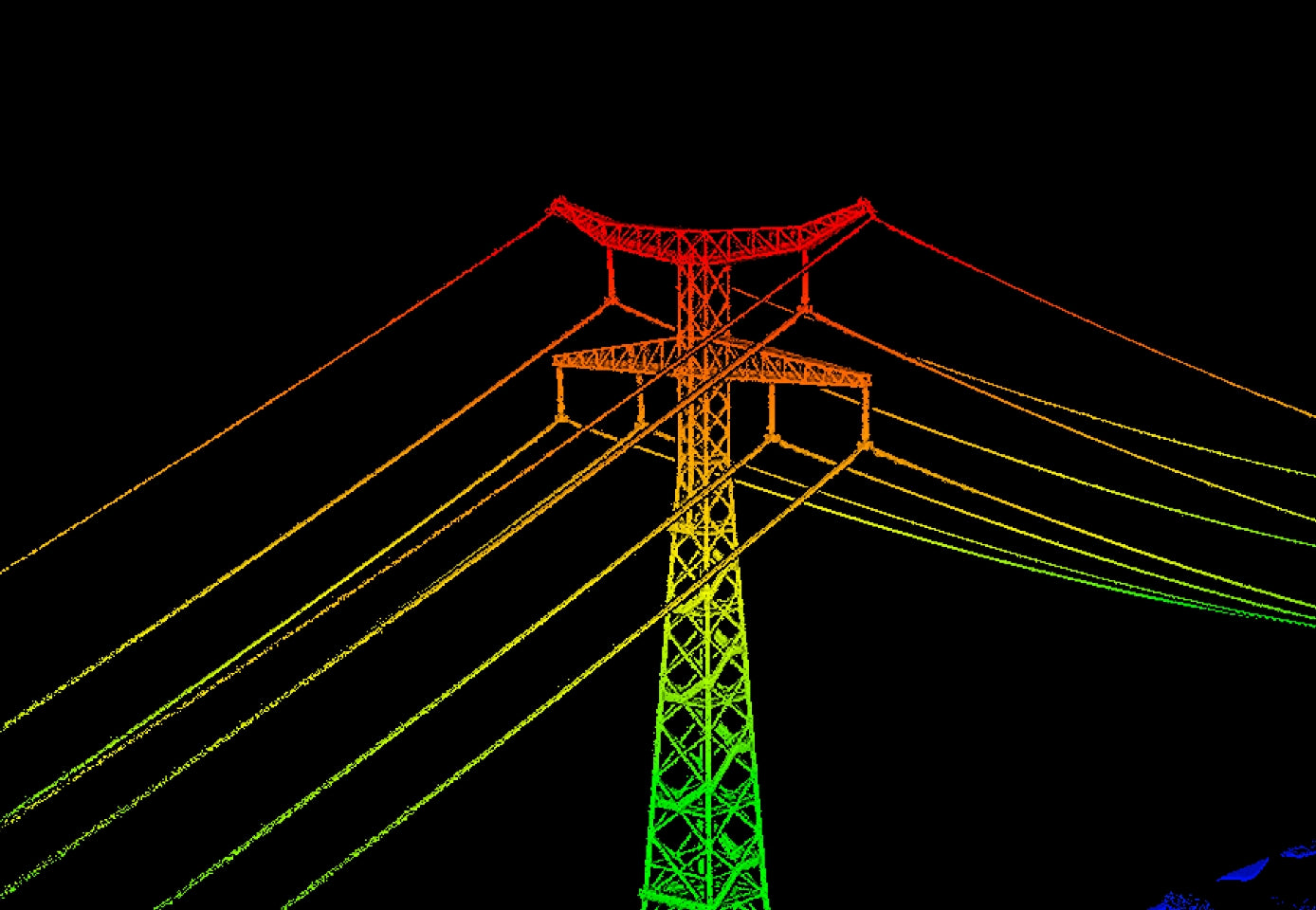

High Accuracy
Vertical accuracy is better than 3 cm at 120 m altitude, better than 5 cm at 300 m, and better than 10 cm at 500 m [3], easily supporting mapping projects at 1:500, 1:1000, and 1:2000 scales.

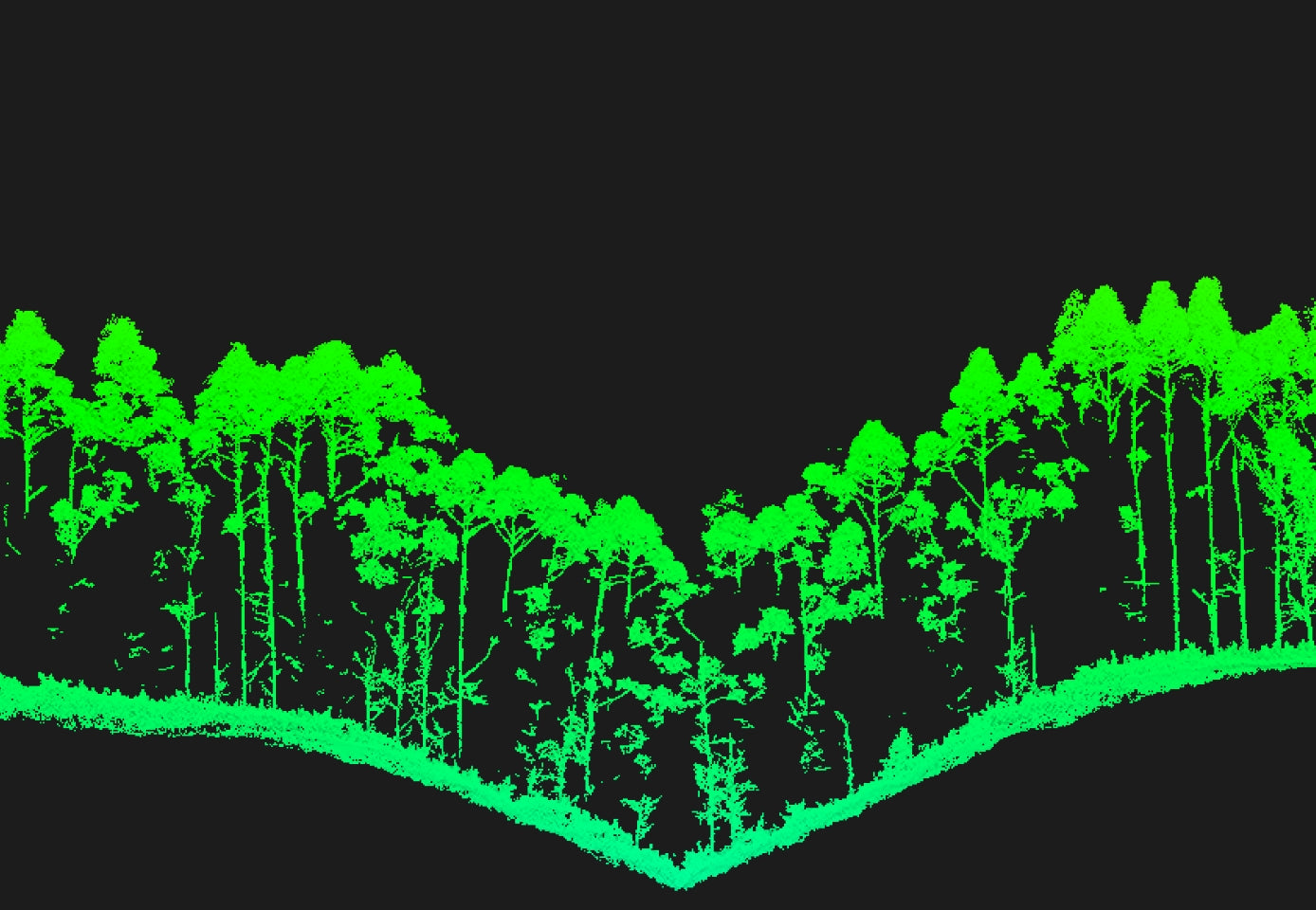

High Penetration
Provides superior penetration capability with a smaller laser spot and higher single-pulse energy. For terrain mapping and similar uses, L3 captures more complete ground points for better results.

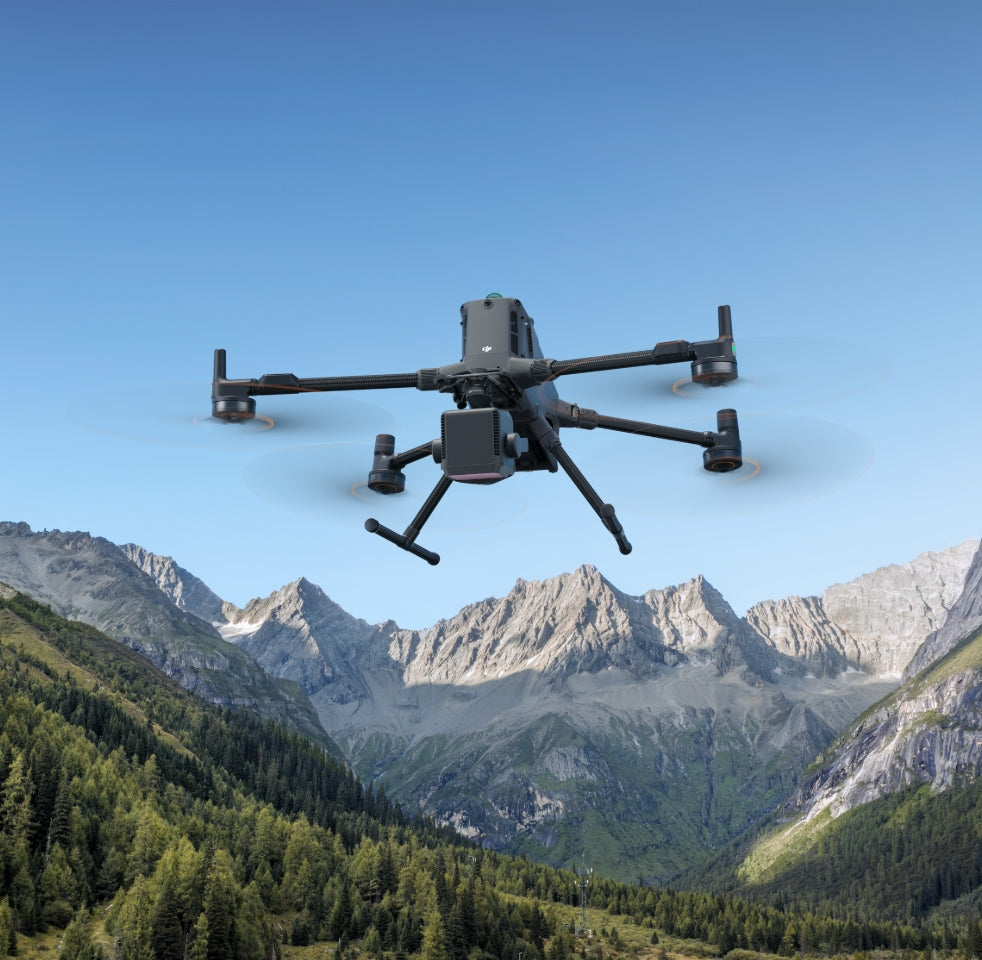

High Efficiency
When mounted on DJI Matrice 400, Zenmuse L3 delivers outstanding efficiency. At a flight altitude of 300 m, a single flight can cover up to 10 km², enabling up to 100 km² of daily coverage [2].

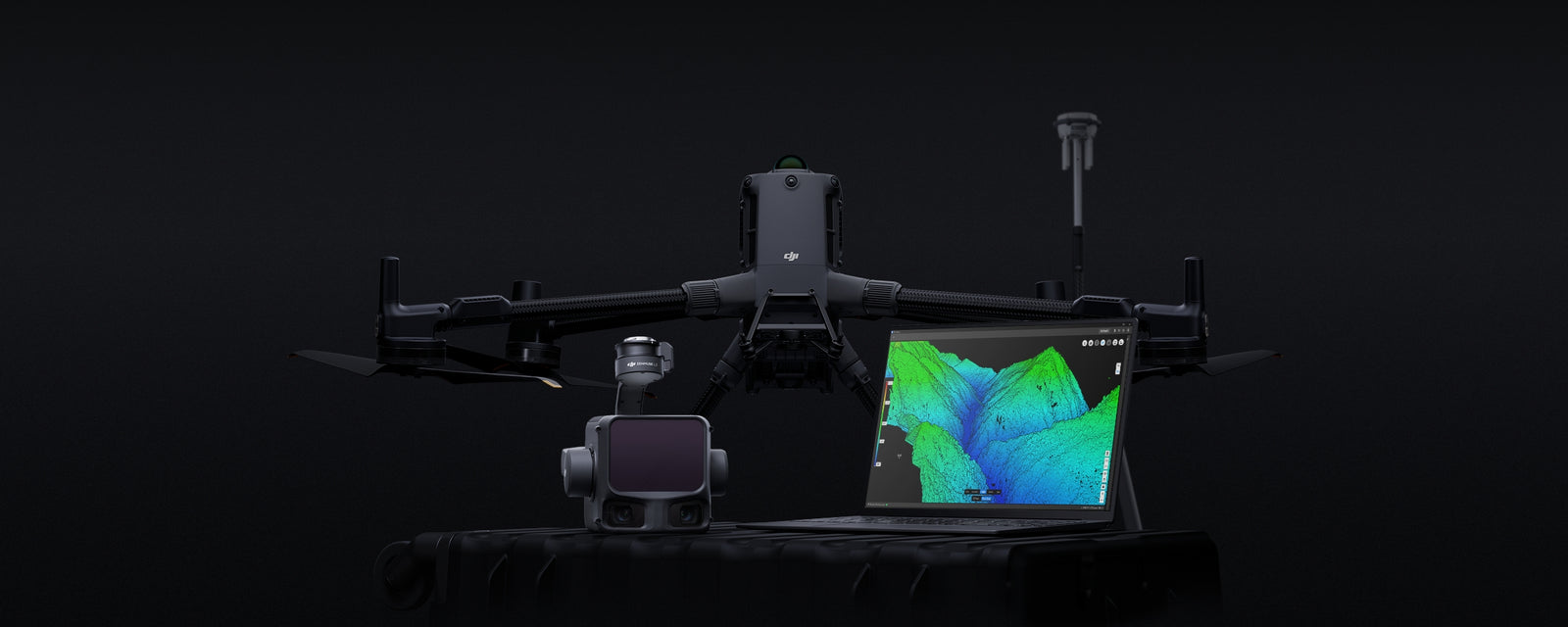

End-To-End Solution
Zenmuse L3 integrates with DJI's ecosystem to deliver an end-to-end mapping solution. Enjoy simpler, unified workflows from data acquisition and processing to application.
Specs
System Specifications
- Product Name
- Zenmuse L3
- Point Cloud System Accuracy
- At 120 m flight altitude: Vertical 3 cm (RMSE), Horizontal 4 cm (RMSE);
At 300 m flight altitude: Vertical 5 cm (RMSE), Horizontal 7.5 cm (RMSE) - Point Cloud Thickness
- 2 cm @1σ (120 m nadir flight altitude);
2 cm @1σ (300 m nadir flight altitude) - Combined Horizontal FOV (Dual RGB Mapping Cameras)
- 107° (composed by merging images from two cameras with a 45° optical axis angle between them)
- RGB Ground Sampling Distance (GSD)
- Average value: 3 cm (300 m nadir flight altitude)
- Weight
- 1.60 kg (without single gimbal connector); the Zenmuse L3 single gimbal connector weighs 145 g
- Dimensions
- 192×162×202 mm (L×W×H)
- Power
- 64 W (typical), 100 W (max)
- Supported Aircraft
- DJI Matrice 400 (requires the Zenmuse L3 single gimbal connector)
- Ingress Protection Rating
- IP54
- Operating Temperature
- -20° to 50° C (-4° to 122° F)
- Storage Temperature
- -40° to 70° C (-40° to 158° F)
LiDAR
- Laser Wavelength
- 1535 nm
- Laser Beam Divergence
- 0.25 mrad (1/e²)
- Laser Spot Size
- Φ 41 mm @120 m (1/e²); Φ 86 mm @300 m (1/e²)
- Detection Range
- 700 m @10% reflectivity, 350 kHz; 950 m @10% reflectivity, 100 kHz; 2000 m @80% reflectivity, 100 kHz
- Wire Detection Range
- 21.6mm steel core aluminum stranded wire: 300 m @100 klx, 350 kHz; 18.4mm black PVC insulated wire: 100 m @100 klx, 350 kHz
- Ranging Accuracy
- Absolute accuracy: ±10 mm; Repeatability: < 5 mm (1σ)
- Minimum Effective Detection Distance
- 10 m
- Laser Pulse Emission Frequency
- 100 kHz (recommended flight altitude < 500 m); 350 kHz (< 300 m); 1000 kHz (< 100 m); 2000 kHz (< 50 m)
- Number of Returns
- 4, 8, 16 returns (100 kHz, 350 kHz); 4, 8 returns (1000 kHz); 4 returns (2000 kHz)
- Cross-Cycle Calculation
- 7 times
- Scanning Mode and FOV
- Linear: horizontal 80°, vertical 3°; Star-Shaped: horizontal 80°, vertical 80°; Non-Repetitive: horizontal 80°, vertical 80°
- Laser Safety Classification
- Class 1 (IEC 60825-1:2014)
RGB Mapping Camera
- Sensor
- 4/3 CMOS
- Lens
- Equivalent focal length: 28 mm; FOV: 73.3° (diagonal), 62° (horizontal), 41.2° (vertical); Aperture: f/2.0-f/11
- Shutter
- Mechanical shutter: 2-1/1500 s (f/2.0), 2-1/2000 s (f/2.8-f/11); Shutter count: 500,000; Electronic shutter: 2-1/16000 s
- Photo Size
- 100 MP: 12288×8192; 25 MP: 6144×4096
- Minimum Photo Interval
- JPEG: 0.5 s (25 MP), 1 s (100 MP); RAW or JPEG + RAW: 1.2 s
- Video Specification
- MP4 (MPEG-4 HEVC/H.265); 4K: 3840×2160@30fps; FHD: 1920×1080@30fps
Position and Orientation System (POS) - GNSS Update Rate
- 5 Hz
- POS Update Rate
- 200 Hz
- Attitude Error
- Yaw angle: 0.02° (post-processed, 1σ); Pitch/Roll angle: 0.01° (post-processed, 1σ)
- Positioning Accuracy
- Horizontal: 1.0 cm + 1 ppm (RTK fix); Vertical: 1.5 cm + 1 ppm (RTK fix)
- Supported PPK Differential Data Formats
- DAT (generated in Base Station Mode by D-RTK 3 Multifunctional Station and D-RTK 2); RINEX v2.1x, v3.0x; RTCM v3.0, v3.1, v3.2, v3.3 (MSM3-MSM7); OEM: OEM4, OEM6
Gimbal
- Degrees of Freedom
- 3-axis (pitch, roll, yaw)
- Angular Accuracy
- ±0.01°
- Mechanical Range
- Pitch: -135° to +73°; Roll: -90° to +60°; Yaw: -105° to +105° (structural limit, not controllable range)
- Controllable Range
- Pitch: -120° to +60°; Yaw: -80° to +80° (roll is uncontrollable, for stabilization only)
- Self-Check Method
- Roll axis: self-check not required; Yaw axis: checks using limit stop; Pitch axis: self-check not required
- Mounting Method
- Detachable DJI SKYPORT (Zenmuse L3 single gimbal connector)
Data Storage
- Raw Data Storage
- Photo/IMU/Point cloud/GNSS/Calibration files
- Standard Memory Card
- CFexpress Type B Memory Card, sequential write speed 1500 MB/s
- Standard Card Reader
- Read/write speed > 900 MB/s
Software Ecosystem
- Data Collection
- DJI Pilot 2
- Data Processing
- DJI Terra
- Data Application
- DJI Modify
- Cloud Application
- DJI FlightHub 2
- Data Format
- DJI Terra exports point cloud models in PNTS/LAS/LAZ/PLY/PCD/S3MB; DJI Modify imports point cloud models in LAS
