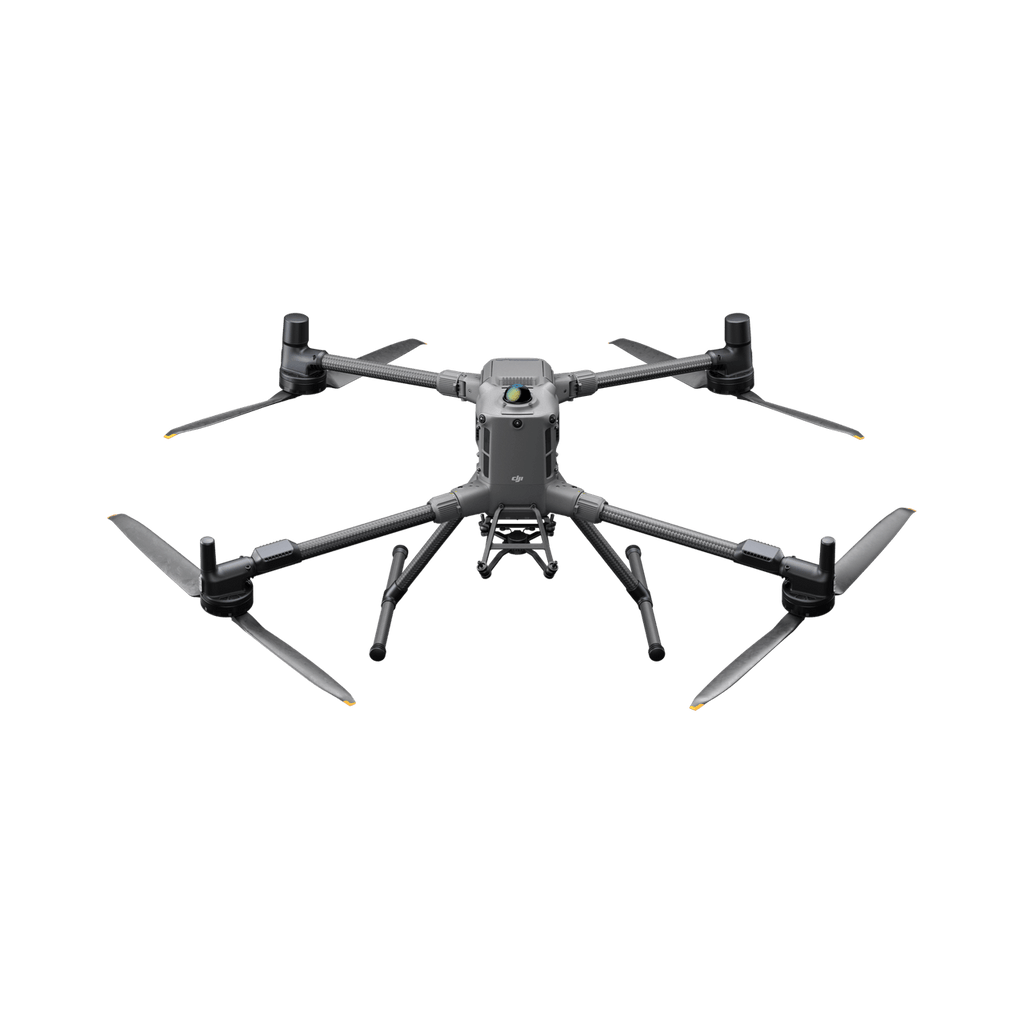

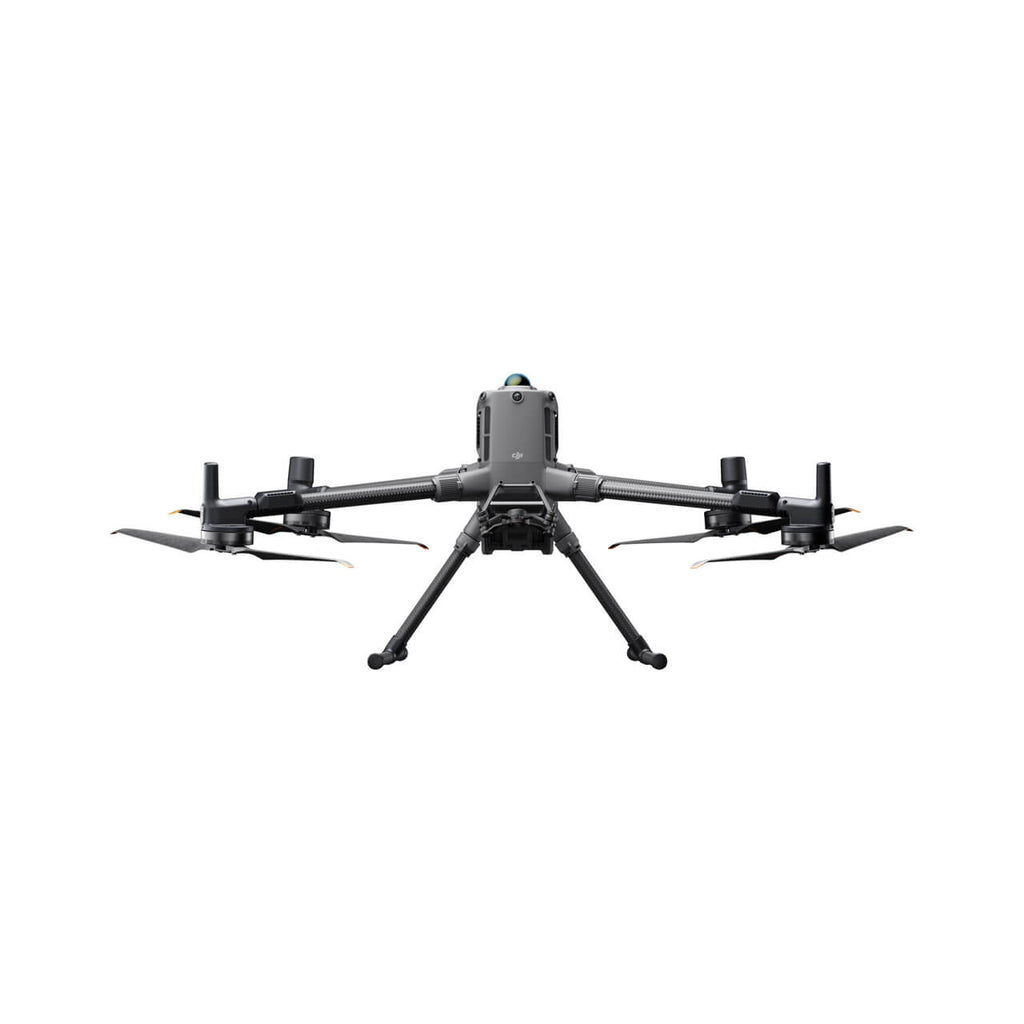

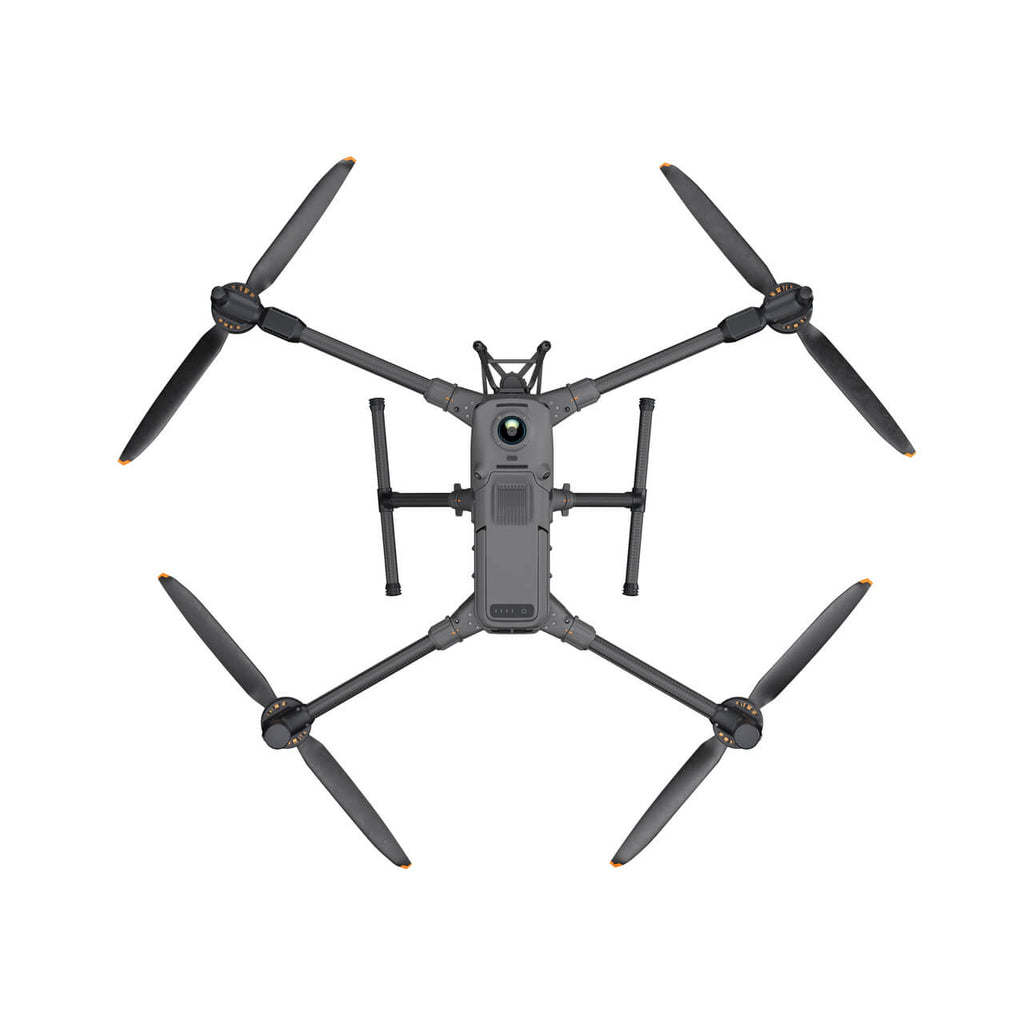

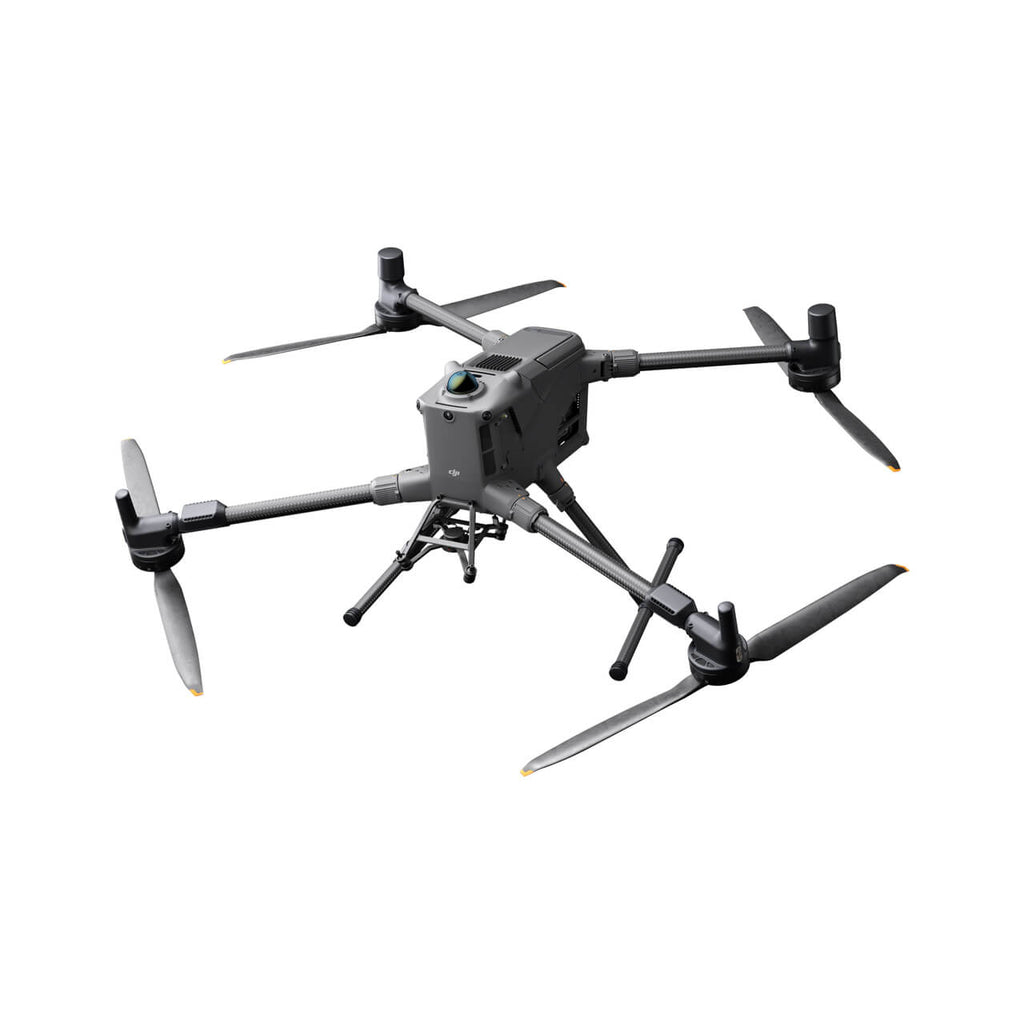

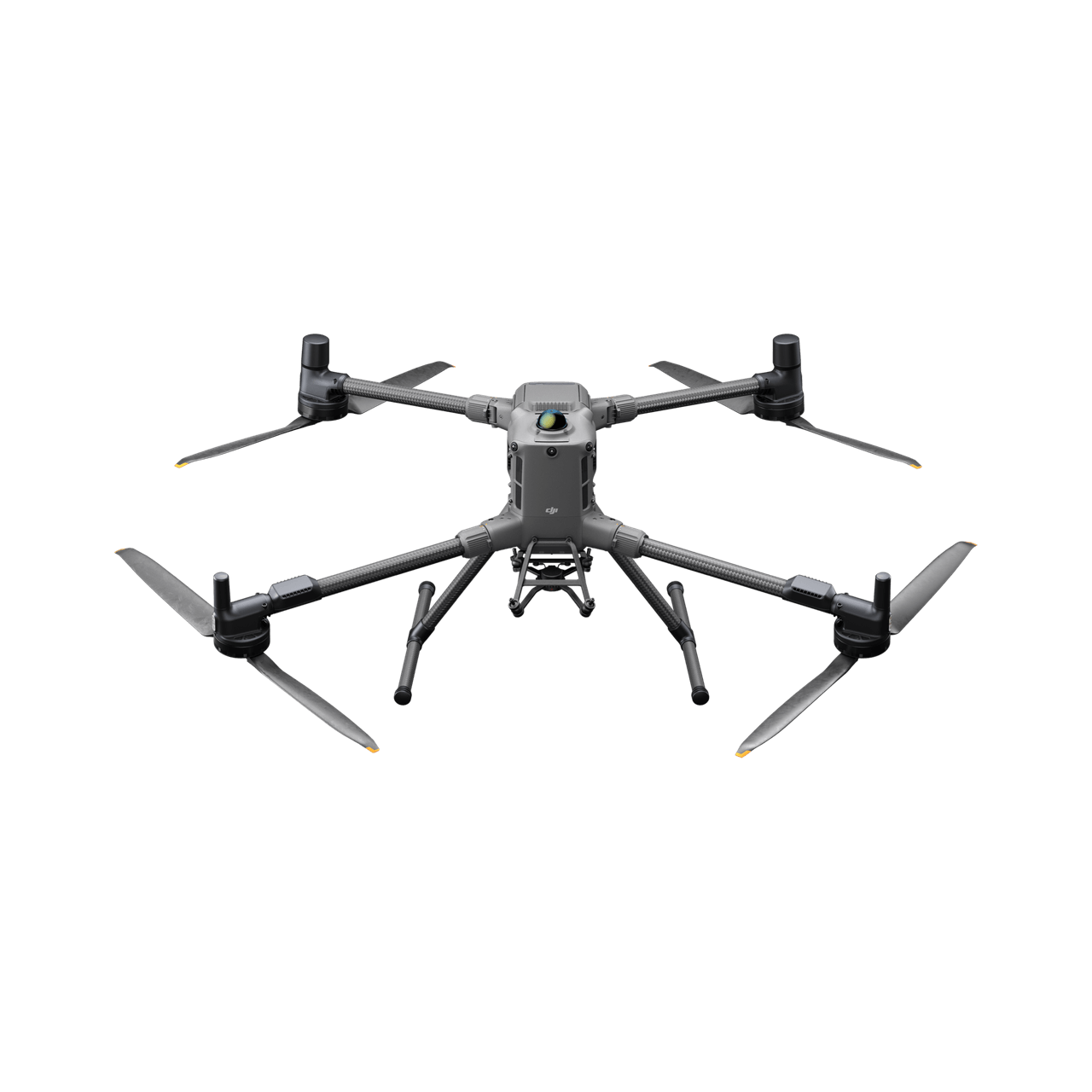

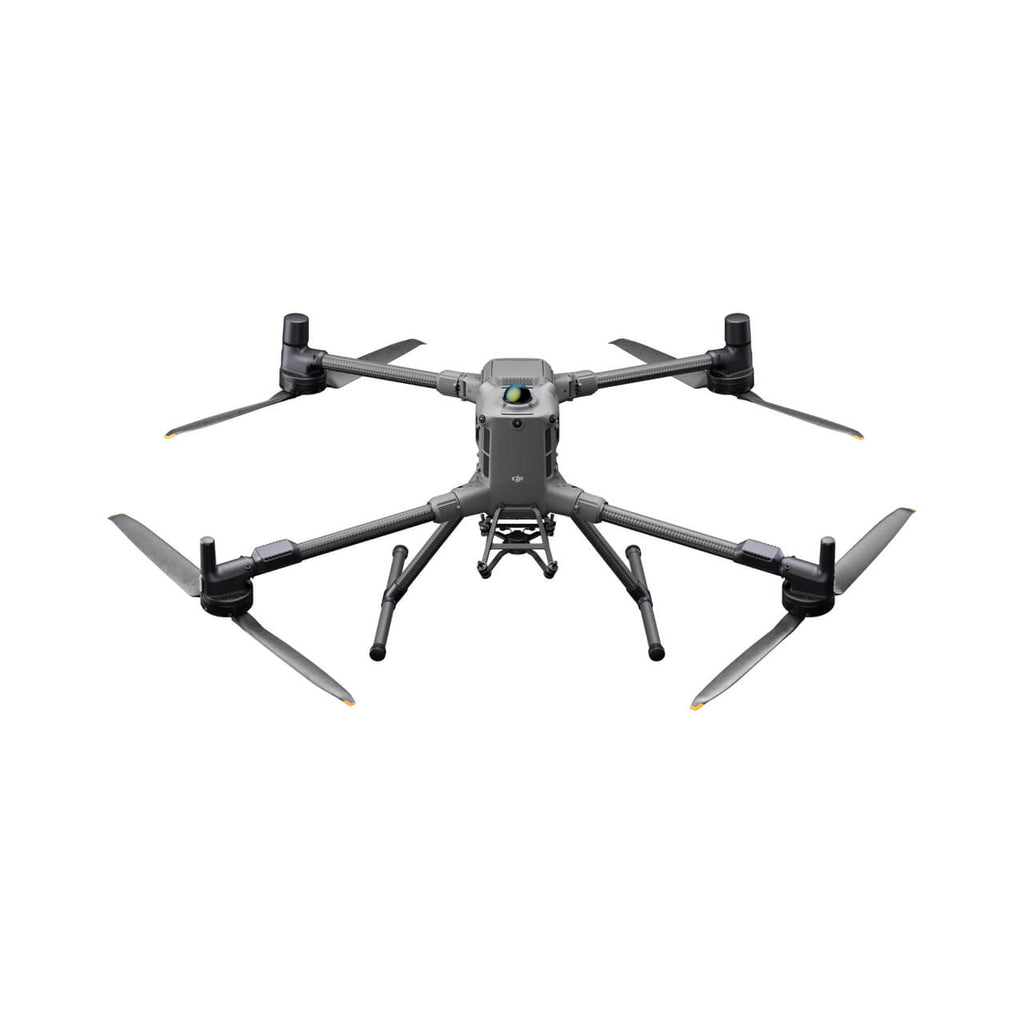

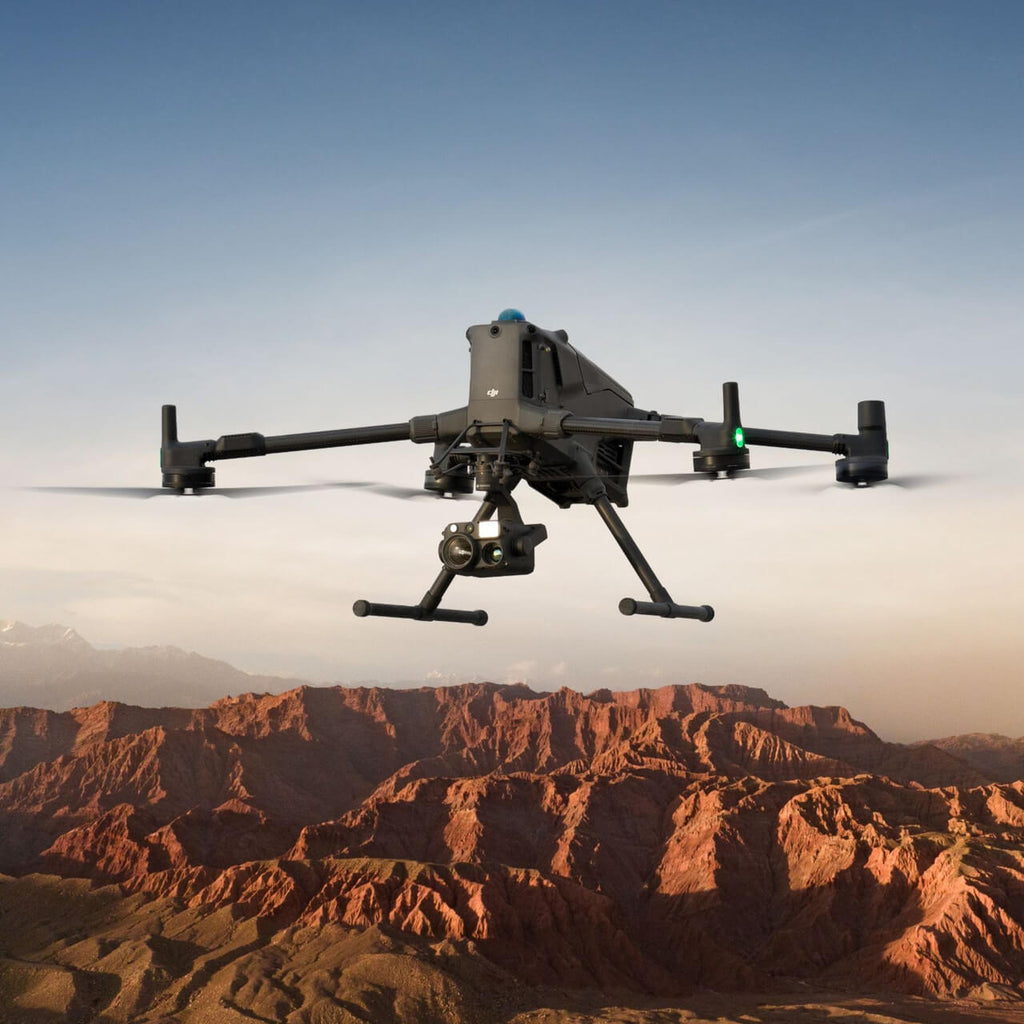

Name: DJI Matrice 400
Brand: Dronemaxfly
SKU: CB.202505213099
Price: 10299.00 USD
Availability: InStock

DJI Matrice 400

$10,299.00 USD

Long-endurance flagship drone platform with power-line-level obstacle sensing

Key Features

Extended Flight Time, Dust and Water Resistant
Upgraded Payload Capacity and Multi-Payload Support
Power-Line-Level Obstacle Sensing, Safer Flight
Enhanced Intelligence and Efficiency
Easier Automated Operations
Comprehensive Accessory Upgrades

Extended Flight Time

Matrice 400 has a forward flight time of up to 59 minutes [2], a hover time of up to 53 minutes [6], and an IP55 protection rating [7].

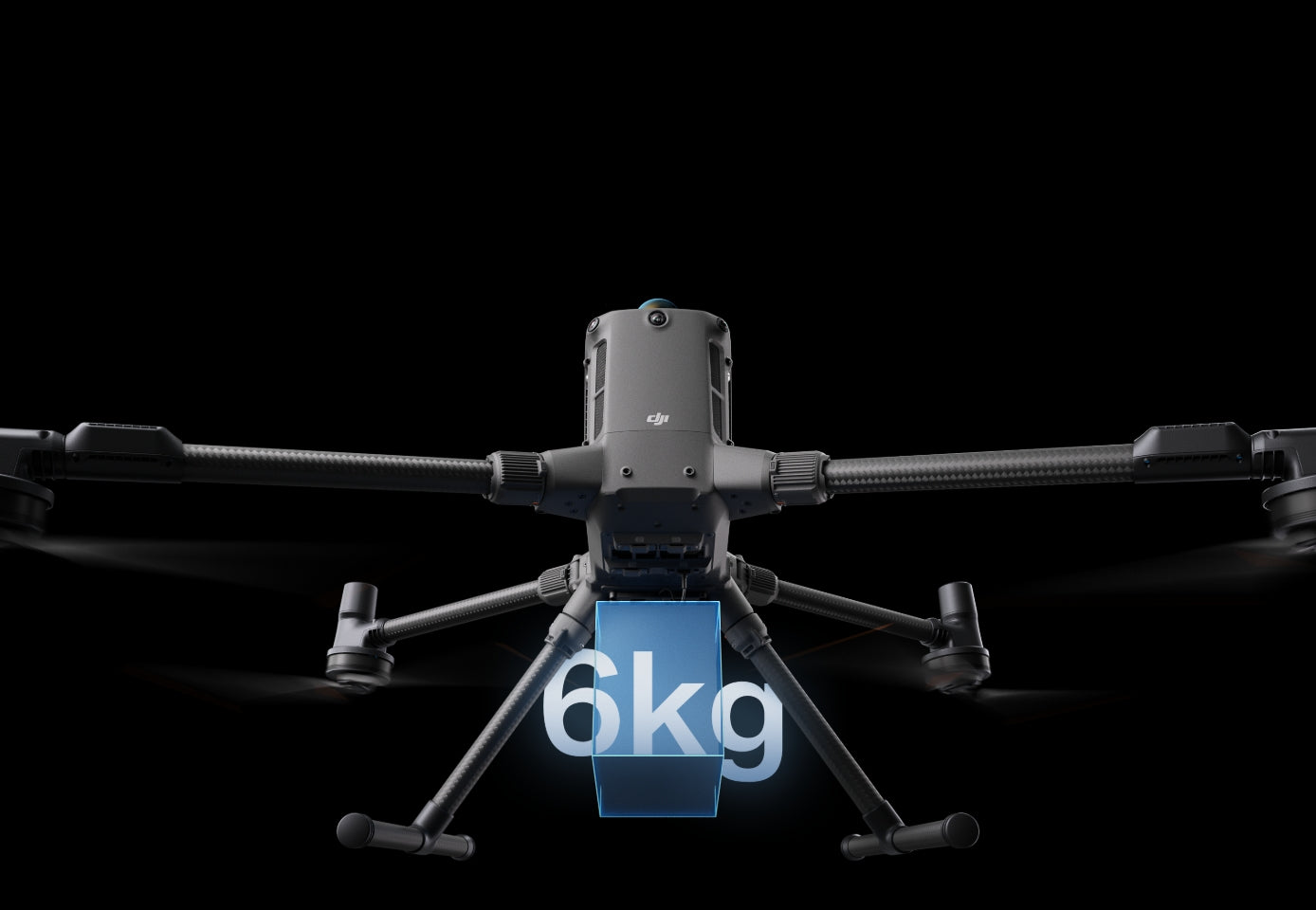

Upgraded Payload Capacity

Depending on the task, Matrice 400 can be equipped with the Zenmuse H30 Series, L2, P1, S1 Spotlight, Manifold 3 [8], or third-party payloads.

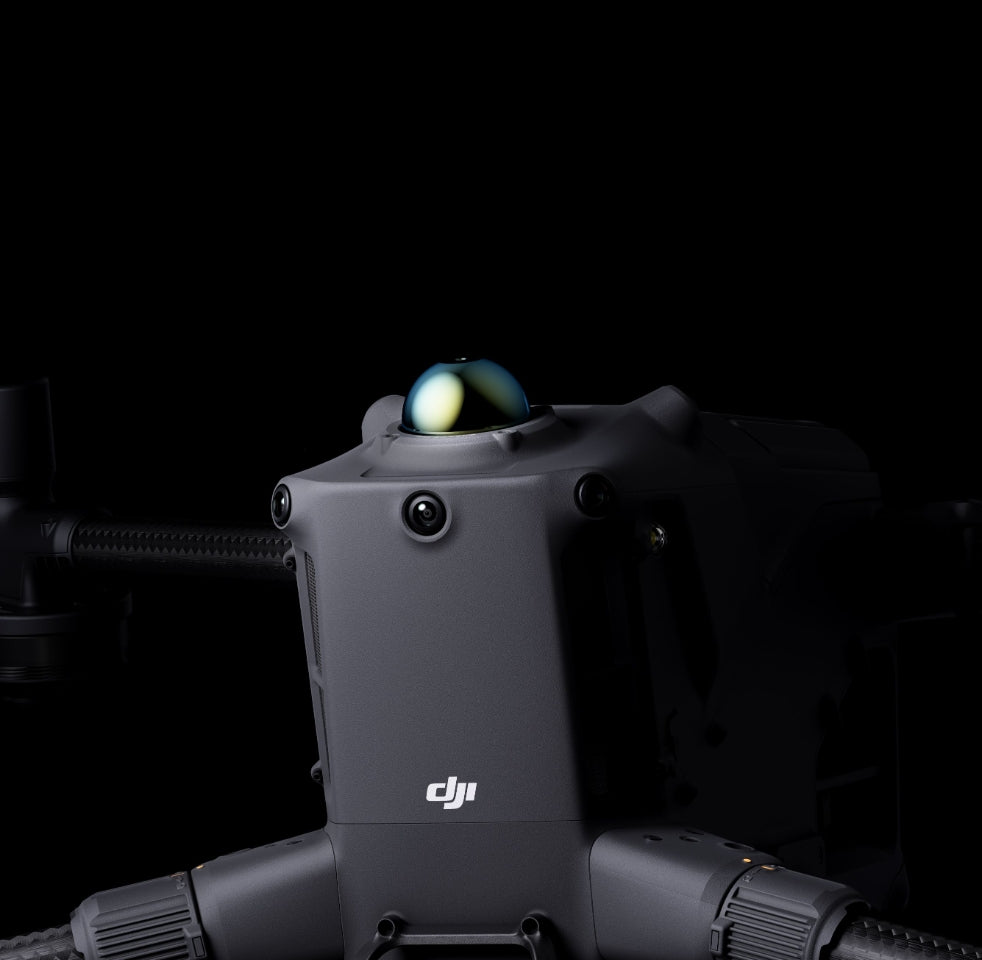

Power-Line-Level Obstacle Sensing

With LiDAR, mmWave radar and low-light fisheye vision sensors, Matrice 400 detects power lines across mountainous terrain — even in darkness [3].

Enhanced Intelligence and Efficiency

Matrice 400 boosts efficiency with Smart Detection, Smart AR Projection, Real-Time Terrain Following [9], and ship-based takeoff/landing [10].

Easier Automated Operations

Matrice 400 enables automated power line inspection flights with Zenmuse L2 [8], as well as Slope and Geometric Route planning with FlightHub 2.

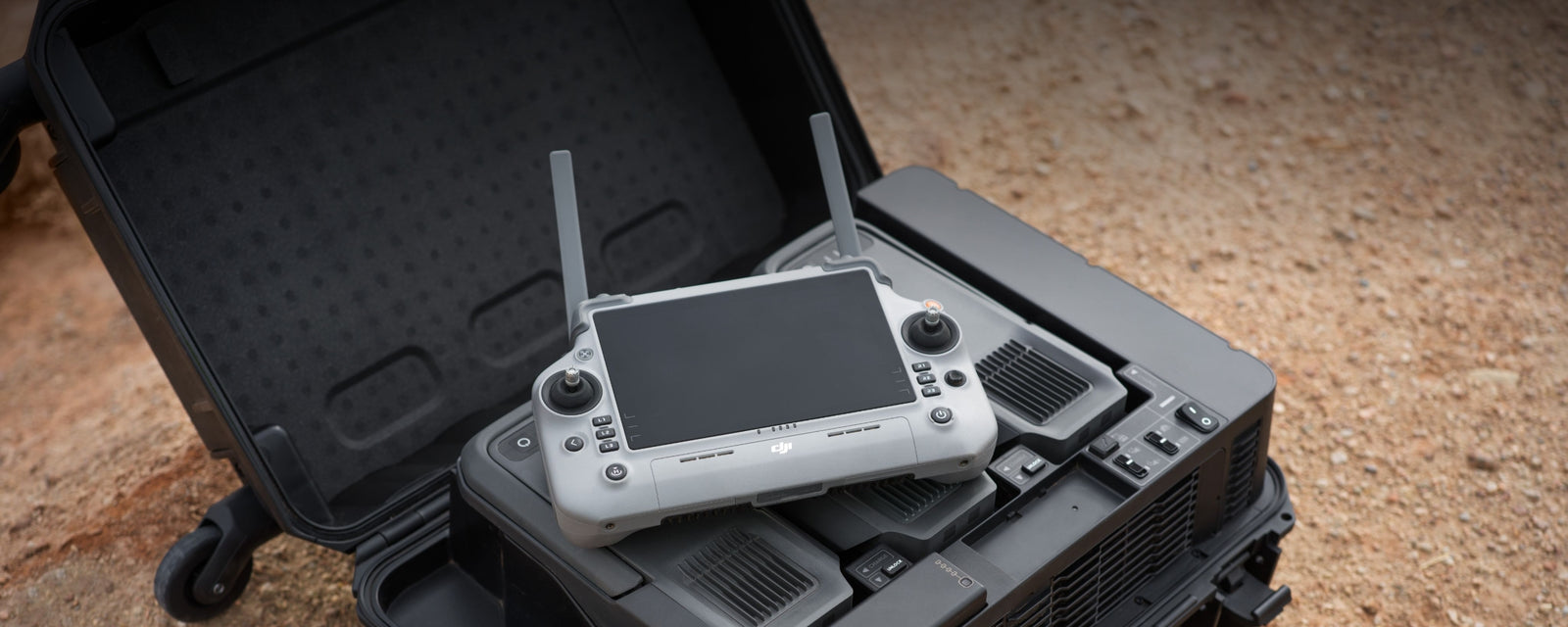

Comprehensive Accessory Upgrades

Matrice 400 works with RC Plus 2 Enterprise Enhanced, Cellular Dongle 2 [11], TB100 battery, TB100C tethered battery, and BS100 battery station.

Specs

Aircraft

Takeoff Weight (with propellers): Without batteries: 5020±20 g; With batteries: 9740±40 g
Max Takeoff Weight: 15.8 kg
Dimensions: Unfolded: 980×760×480 mm (L×W×H, with landing gear); Folded: 490×490×480 mm (L×W×H, with landing gear and gimbal)
Max Payload: 6 kg [1]
Propeller Size: 25 inches
Diagonal Wheelbase: 1070 mm
Max Ascent Speed: 10 m/s
Max Descent Speed: 8 m/s
Max Horizontal Speed: 25 m/s (at sea level, no wind)
Max Takeoff Altitude: 7000 m
Max Flight Time (no wind): 59 minutes [2]
Max Hover Time (no wind): 53 minutes [6]
Max Flight Distance (no wind): 49 km
Max Wind Speed Resistance: 12 m/s (during takeoff and landing)
Max Yaw Angular Velocity: 100°/s
Max Pitch Angle: 35°
Operating Temperature: -20° to 50° C (-4° to 122° F, without solar radiation)
Global Navigation Satellite System (GNSS): GPS + Galileo + BeiDou + GLONASS (GLONASS supported only when the RTK module is enabled)
Hovering Accuracy Range: Vertical: ±0.1 m (vision), ±0.5 m (satellite), ±0.1 m (RTK); Horizontal: ±0.3 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)
RTK GNSS Accuracy: RTK Fix: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
RTK Heading: Supports RTK heading with an accuracy better than 2°
Airborne ADS-B In: Standard airborne ADS-B In receiver with dual antennas, supporting reception up to 20 km
Ports: USB-C debug port ×1 (USB 2.0); E-Port V2 ×4 (lower part of the drone, 120 W single-port power); Cellular Dongle 2 interface ×2 (underside of the drone)
Propeller Model: 2510F
Beacon: Built into the aircraft
Ingress Protection Rating: IP55 [7]
Motor Model: 7510

Gimbal

Max Payload for Single Gimbal Connector: 1400 g (if exceeding 950 g, gimbal damper lifespan decreases from 1000 hours to 400 hours)
Max Payload for Dual Gimbal Connector: 950 g per mount
Max Payload for Third Gimbal Connector: 3 kg for quick-release port, 6 kg for screw lock fastening
Max Payload for Zenmuse L3 Gimbal Connector: 2100 g (if exceeding 1600 g, gimbal damper lifespan decreases from 1000 hours to 400 hours)

Sensing

Sensing Type: Omnidirectional binocular vision system (full-color fisheye vision sensors); horizontal rotating LiDAR, upper LiDAR, downward 3D infrared range sensor; six-direction mmWave radar
Forward: Measurement range: 0.4-21 m; Detection range: 0.4-200 m; FOV: 90° (horizontal) × 90° (vertical)
Backward: Measurement range: 0.4-21 m; Detection range: 0.4-200 m; FOV: 90° (horizontal) × 90° (vertical)
Lateral: Measurement range: 0.6-21 m; Detection range: 0.5-200 m; FOV: 90° (horizontal) × 90° (vertical)
Downward: Measurement range: 0.5-19 m; FOV: 160° (front-rear) × 105° (left-right)
Rotating LiDAR: Standard measurement range: 0.5-100 m @ 100,000 lux (10% reflectivity); Power line range: 35 m @ 30° @ 10,000 lux (21.6 mm wire); FOV: 360° (horizontal) × 58° (vertical); 520,000 points/second; 905 nm; Class 1 eye-safe (IEC60825-1:2014)
Upper LiDAR (3D ToF): 0.5-25 m at night (reflectivity > 10%); FOV: 60° × 60°
Downward 3D Infrared Range Sensor: Measurement range: 0.3-8 m (reflectivity > 10%); FOV: 60° × 60°
mmWave Radar: Power line range: 36 m (12 mm wire), 50 m (21.6 mm wire); FOV: ±45° (horizontal and vertical). mmWave radar may be unavailable or restricted in some countries or regions.

FPV Camera

Resolution: 1080p
Field of View (FOV): DFOV: 150°; HFOV: 139.6°; VFOV: 95.3°
Frame Rate: 30fps
Night Vision: Starlight Grade

Video Transmission

Video Transmission System: DJI O4 Enterprise Enhanced Video Transmission System
Live View Quality: Remote controller: 3-channel 1080p/30fps
Operating Frequency: 902-928 MHz, 1.430-1.444 GHz, 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz (allowed frequencies vary by country/region) [5]
Max Transmission Distance (unobstructed, free of interference): 40 km (FCC); 20 km (CE/SRRC/MIC)
Max Transmission Distance (with interference): Strong interference: approx. 1.5-6 km; Medium interference: approx. 6-15 km; Weak interference: approx. 15-40 km (FCC standard)
Max Download Speed: Standard mode: 80 Mbps downlink; Playback download: < 25 MBps; Single-channel bitrate: ≤ 12 Mbps
Antenna: WLAN antenna ×8 (6 vertically polarized + 2 horizontally polarized); sub2G antenna ×2; 4G antenna ×4; Operating mode: 2T4R
Others: Supports Dual Control Mode and 2-channel Cellular Dongle 2

Battery (TB100)

Model: TB100
Capacity: 20254 mAh
Standard Voltage: 48.23 V
Max Charging Voltage: 54.6 V
Cell Type: Li-ion 13S
Energy: 977 Wh
Weight: 4720 ± 20 g
Charging Temperature: 5° to 45° C (41° to 113° F)
Discharging Temperature: -20° to 75° C (-4° to 167° F)
Battery Heating: Single battery, onboard, and battery station heating supported
Discharge Rate: 4C
Max Charging Power: 2C
Low-Temperature Charging: Supports low-temperature self-heating charging
Cycle Count: 400

Intelligent Battery Station (BS100)

Model: BS100
Net Weight: 11.8 kg
Dimensions: 605×410×250 mm (L×W×H)
Supported Batteries: TB100 Intelligent Flight Battery, TB100C Tethered Battery, WB37 Battery
Operating Temperature: -20° to 40° C (-4° to 104° F)
Input: 100-240 V (AC), 50-60 Hz, 10 A
Output: TB100 interface: approx. 1185 W (100-110 V), 1474 W (110-180 V), 2184 W (180-240 V); WB37 interface: approx. 52 W; USB-C: up to 20.0 V 3.25 A
Number of Charging Channels: Three TB100 and two WB37 batteries
Charging Mode: Ready-to-Fly Mode 90%; Standard Mode 100%; supports Fast Charging Mode and Silent Mode
Charging Time (TB100/TB100C, 0% to 100%): 220 V: 45 minutes (Fast Charging), 110 minutes (Silent); 110 V: 70 minutes (Fast Charging), 110 minutes (Silent)

Remote Controller (DJI RC Plus 2 Enterprise Enhanced)

Model: TKPL 2
Video Transmission System: DJI O4 Enterprise Enhanced Video Transmission System
Max Transmission Distance (unobstructed, free of interference): 40 km (FCC); 20 km (CE/SRRC/MIC)
Antenna: 2.4GHz/5.8GHz multi-beam high-gain antenna: 2T4R; sub2G module: 2T2R
Enhanced Transmission: Supports DJI Cellular Dongle 2
Wi-Fi Protocol: Wi-Fi Direct, Wireless Display, IEEE 802.11 a/b/g/n/ac/ax; 2×2 MIMO, dual-band simultaneous, up to 1774.5 Mbps
Bluetooth: Bluetooth 5.2 (2.400-2.4835 GHz, < 10 dBm)
Screen: 7.02-inch touchscreen, 1920×1200, 60fps, 1400 nits, 10-point multi-touch
Built-in Battery: 2S2P 18650 Li-ion (6500 mAh @ 7.2 V), 46.8 Wh
External Battery: Optional, WB37 (4920 mAh @ 7.6 V), 37 Wh
Battery Runtime: 3.8 hours (internal); 3.2 hours (external)
Charging Type: PD fast charging, up to 20V/3.25A USB-C charger; approx. 2 hours charging time
Storage Capacity: RAM 8G + ROM 128G UFS + expandable microSD storage
External Interfaces: HDMI 1.4, SD 3.0, USB-C with OTG (max 65W PD charging), USB-A (USB 2.0)
GNSS: GPS + Galileo + BeiDou
System Version: Android 11
Dimensions: 268×163×94.5 mm (L×W×H)
Weight: 1.15 kg (without external battery)
Operating Temperature: -20° to 50° C (-4° to 122° F)
Supported Aircraft Model: Matrice 400

Compatibility

Gimbal Cameras: Zenmuse L3, Zenmuse H30, Zenmuse H30T, Zenmuse L2, Zenmuse P1
Accessories: Zenmuse S1 (drone spotlight), Zenmuse V1 (drone speaker), Manifold 3, DJI RC Plus 2 sub2G SDR Module, DJI Cellular Dongle 2
RTK Station: D-RTK 3 Multifunctional Station, D-RTK 2 Mobile Station
Ecosystem Accessories: DJI X-Port, DJI E-Port V2 Development Kit, DJI E-Port V2 Coaxial Cable Kit, DJI SKYPORT V3 Adapter Set, DJI SKYPORT V3 Coaxial Cable Kit
